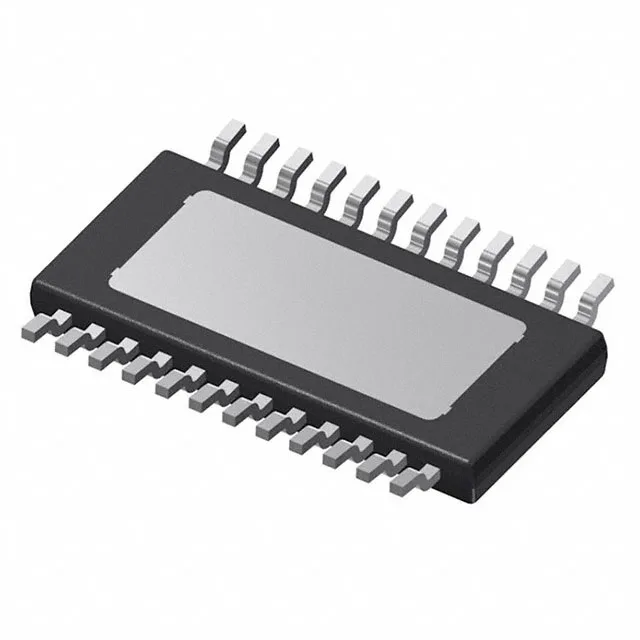

TLE94112ESXUMA1 - Infineon Technologies
MPNTLE94112ESXUMA1
End of Life
IC HALF BRIDGE DRIVER 24TSDSO
$3.79Ref. price · indicative, final on quote
Packaging24-TSSOP (0.154", 3.90mm Width) Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Load type | Inductive, Capacitive, Resistive |
| Mounting | Surface Mount |
| Voltage - load | 3V ~ 5.5V |
| Supply voltage | 3V ~ 5.5V |
| Interface | Logic, PWM, SPI |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Charge Pump |
| Applications | DC Motors, General Purpose |
| Rds on | 1.3Ohm LS, 1.3Ohm HS |
| Case | 24-TSSOP (0.154\", 3.90mm Width) Exposed Pad |
| Fault protection | Current Limiting, Over Current, Over Temperature, Short Circuit |
| Output configuration | Half Bridge (12) |
