What this 8-bit MCU brings to a control board

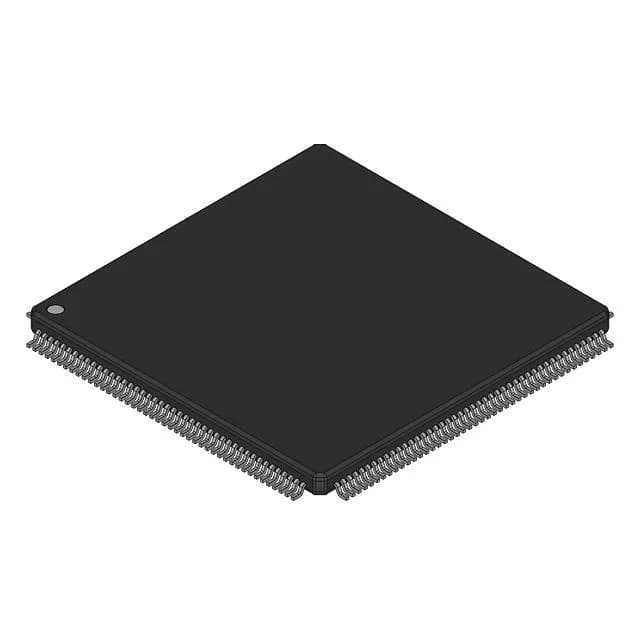

The Infineon SAK-XC836MT-2FRAAB is an 8-bit XC800-family microcontroller built for applications that need a wide temperature range and a simple peripheral set. It runs at 24 MHz, carries 8 KB of Flash program memory, and 512 x 8 bytes of RAM — enough for small control loops, sensor polling, or basic communication handling. The part includes a 10-bit ADC with 8 multiplexed channels, plus I²C, SSC (SPI-compatible), and UART/USART serial interfaces. Brown-out detect, POR, PWM generation, and a watchdog timer are on-chip, so external supervisor ICs aren't needed for most designs.
Memory and peripherals for a small-footprint design
8 KB of Flash is enough for a modest firmware image — think a fan controller, a simple pump driver, or a communication bridge. The 512 x 8 RAM handles a few data buffers and stack frames, but not large lookup tables or extensive logging. The 25 I/O pins give enough headroom for a keypad matrix, a few LEDs, and some discrete sensor inputs. The integrated PWM and watchdog reduce external component count.
Lifecycle and sourcing reality
There's no last-time-buy clock ticking. For a BOM line that needs a qualified 8-bit MCU with extended temperature range, this is a current-production choice — not a scavenger hunt.
