Active production — Cortex-M4F at 160 MHz with 288 KB on-chip Flash

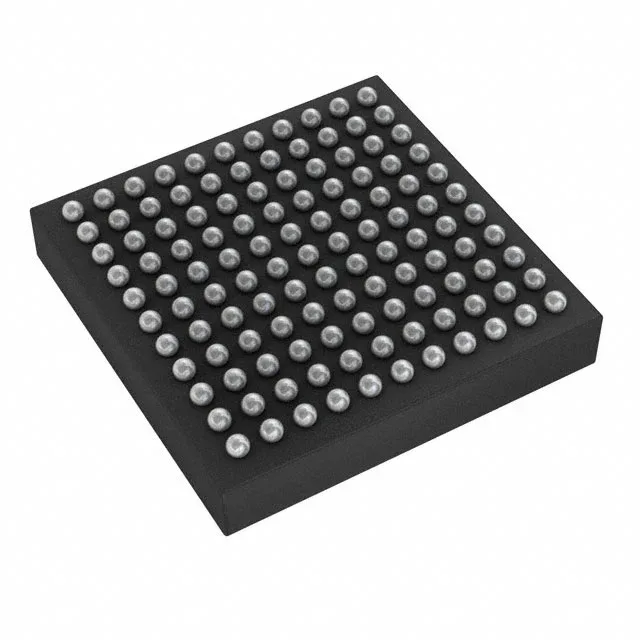

The S6E2H14F0AGV2000M is an Infineon FM4 S6E2H4 series 32-bit MCU built around an ARM Cortex-M4F core clocked at 160 MHz.
Peripheral set and signal chain
On-chip data converters include 24-channel 12-bit ADC and two 12-bit DAC channels — enough analog front-end for multi-sensor acquisition without external multiplexing. Connectivity covers CSIO, EBI/EMI, I²C, LINbus, and UART/USART, plus DMA, LVD, POR, PWM, and WDT peripherals. The 80 general-purpose I/O lines give room for parallel buses and discrete control signals.
