ARM Cortex-M4F at 180 MHz with 1 MB flash

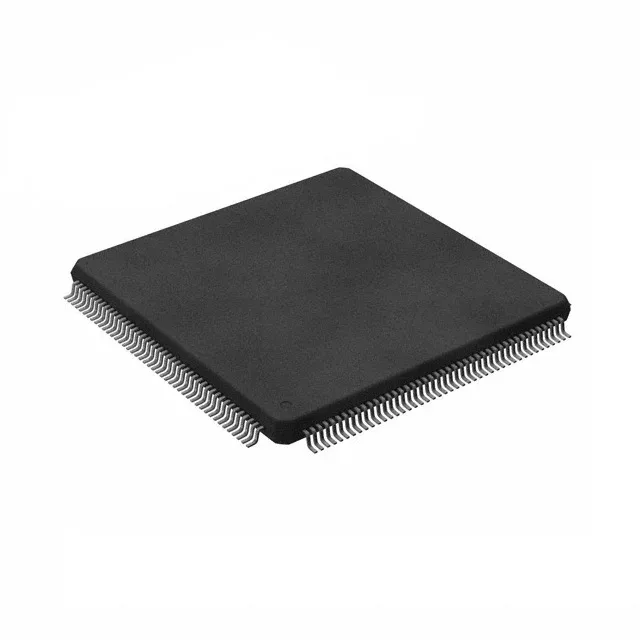

The Infineon S6E2GH8J0AGV2000A is a 32-bit microcontroller from the FM4 S6E2GH series, built around an ARM Cortex-M4F core with single-precision floating-point unit running at 180 MHz. The 1 MB on-chip flash and 192 KB SRAM leave headroom for a real-time OS, application stack, and moderate data buffers without external memory.
153 I/O and rich peripheral set for industrial control
The connectivity block includes CANbus, USB, multiple SPI/I²C/UART channels, LINbus, SmartCard, and SD card interfaces — enough to serve as the central controller in a multi-protocol industrial gateway or PLC module. The 32-channel 12-bit ADC covers multi-sensor acquisition without an external multiplexer. DMA controllers offload peripheral data transfers from the CPU, preserving MIPS for control-loop math. Integrated I²S supports direct audio codec attachment.
