Infineon Technologies S29GL512S11DHA023 — Microcontrollers & Processors (MCU / MPU / DSP)
Infineon Technologies

Infineon S29GL512S11DHA023 512Mbit NOR Flash, 110 ns

MPNS29GL512S11DHA023
End of Life

Infineon Technologies GL-S series Automotive AEC-Q100 NOR flash, S29GL512S11DHA023, 512 Mbit, 110 ns access, 2.7-3.6 V, 64-FBGA (9x9 mm), Tape & Reel.

$11.27Ref. price · indicative, final on quote
S29GL512S11DHA023 datasheet
Packaging64-LBGA
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

S29GL512S11DHA023 Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q100, GL-S
Memory typeNon-Volatile
Mounting typeSurface Mount
Voltage2.7V ~ 3.6V
Memory interfaceParallel
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
TechnologyFLASH - NOR
Access time110 ns
Memory size512Mbit
Memory formatFLASH
Case64-LBGA
Memory organization32M x 16
Write cycle time - word, page60ns

Product details

512 Mbit parallel NOR for automotive code storage

The S29GL512S11DHA023: Organized as 32M x 16 bits, it provides a 16-bit wide data path for direct memory-mapped code execution in engine control units, transmission controllers, and advanced driver-assistance systems. With a 110 ns random access time and 60 ns page write cycle, this part supports fast boot and in-field firmware updates over CAN or Ethernet.

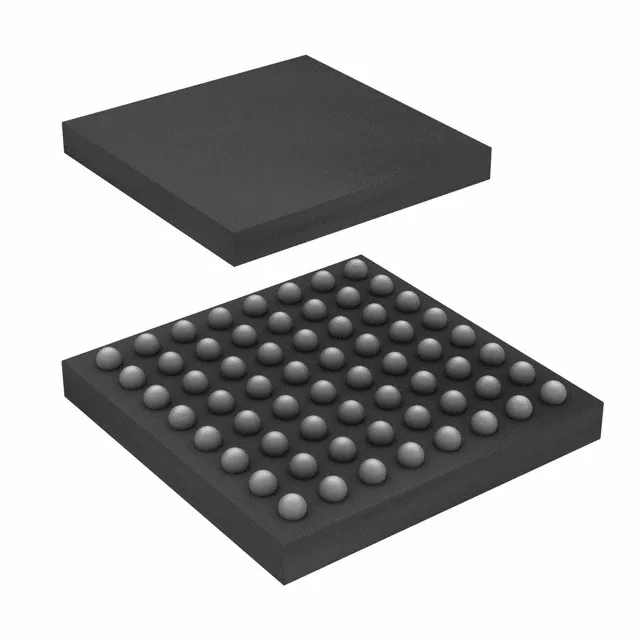

Housed in a 64-ball FBGA measuring 9x9 mm (supplier device package 64-FBGA), the footprint suits multi-layer PCBs with fine-pitch routing. Surface-mount assembly requires a standard reflow profile for lead-free solder; the package is ROHS3 compliant. The parallel interface eliminates SPI protocol latency for time-critical interrupt service routines.

Active lifecycle — no end-of-life pressure

For new designs, the GL-S series remains a supported parallel NOR option alongside the GL-T family. ROHS3 compliance is confirmed. No REACH or conflict-minerals exemptions are flagged in the current documentation.

Frequently asked questions

What is the closest functional alternative to S29GL512S11DHA023?

The S29GL512T11TFIV20 is a 512 Mbit parallel NOR flash from the GL-T series, also with 110 ns access time. The key difference is supply voltage: the GL-T operates at 1.65 V, while the GL-S runs at 2.7–3.6 V. The GL-T uses a 64M x 8 organization and comes in a tray package. They are not pin-compatible without a board spin.

What compliance documentation does Infineon provide for S29GL512S11DHA023?

ROHS3 compliance is confirmed. The part is AEC-Q100 qualified for automotive use. No UL or IEC certification is listed in the available documentation.
