Infineon Technologies ISC027N10NM6ATMA1 — Logic ICs
Infineon Technologies

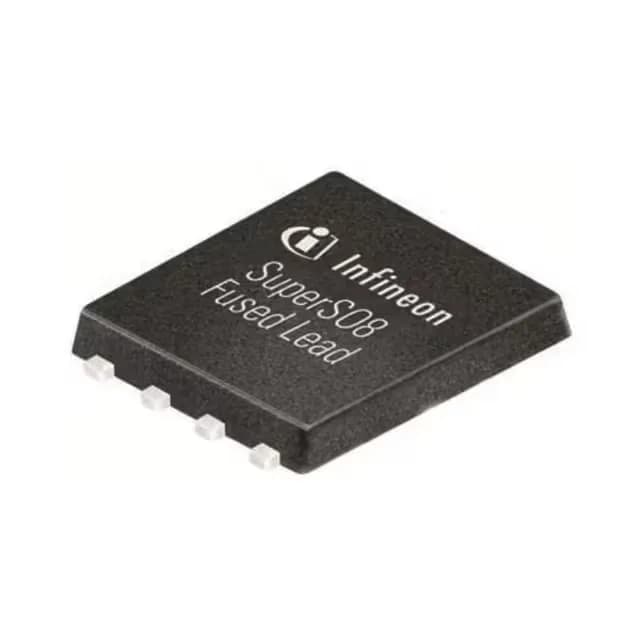

ISC027N10NM6ATMA1 Infineon OptiMOS N-Ch 100V 2.7mOhm MOSFET

MPNISC027N10NM6ATMA1
End of Life

Infineon OptiMOS™ ISC027N10NM6ATMA1, N-Channel MOSFET, 100 V Vdss, 2.7 mOhm Rds(on) at 10 V, 192 A Id (Tc), PG-TDSON-8 FL package, -55 to 175 °C junction.

$4.46Ref. price · indicative, final on quote
ISC027N10NM6ATMA1 datasheet
Packaging8-PowerTDFN
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ISC027N10NM6ATMA1 Technical Specifications
ParameterValue
SeriesOptiMOS™
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage100 V
Drive voltage (Max rds on, min rds on)8V, 10V
Current - continuous drain (Id) @ 25°C23A (Ta), 192A (Tc)
Power dissipation3W (Ta), 217W (Tc)
Operating temperature-55°C ~ 175°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Case8-PowerTDFN
Vgs(th) (Max) @ id3.3V @ 116µA
Rds on (Max) @ id, vgs2.7mOhm @ 50A, 10V
Gate charge (Qg) (Max) @ vgs72.5 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds5500 pF @ 50 V

Product details

The Infineon ISC027N10NM6ATMA1 is a 100 V N-channel MOSFET from the OptiMOS™ family, with Rds(on) of 2.7 mOhm at 10 V gate drive.

2.7 mOhm at 10 V — the conduction-loss number that matters

Rds(on) of 2.7 mOhm is measured at 50 A, 10 V gate drive. Drive voltage range is 8 V and 10 V for max and min Rds(on).

175 °C junction — rated for the hot environments

The 175 °C max is a proper silicon rating, not a derated number — but reliability at that temperature depends on the thermal resistance of the board design. The PG-TDSON-8 FL package's exposed pad is the primary heat path; the datasheet's 217 W power dissipation at case temperature assumes an infinite heatsink on the pad. In practice, derate based on your PCB's thermal impedance.

Active and ROHS3 — no lifecycle surprises

For dual-sourcing or a pin-compatible second source, the BSC027N10NS5 from Infineon's same OptiMOS 5 family is a common cross-shop candidate — same 100 V, 2.7 mOhm class, same PG-TDSON-8 footprint — though always verify the gate charge and switching characteristics against your specific drive conditions.
