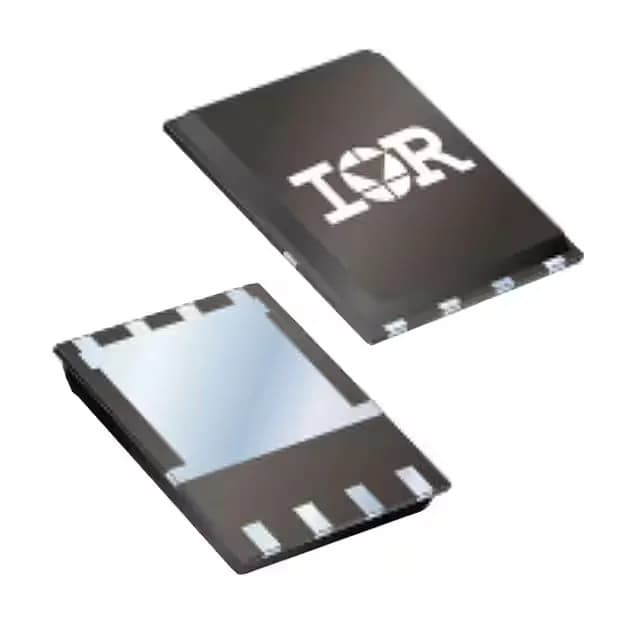

Infineon Technologies ISC019N03L5SATMA1

ISC019N03L5SATMA1 Infineon OptiMOS N-Ch 30V MOSFET, 1.9mOhm

MPNISC019N03L5SATMA1
End of Life

Infineon OptiMOS™ ISC019N03L5SATMA1, N-Channel MOSFET, 30 Vdss, 1.9 mOhm Rds(on) at 30 A/10 V, 28 A (Ta)/100 A (Tc), PG-TDSON-8-5 surface-mount package.

$1.06Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
SeriesOptiMOS™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ISC019N03L5SATMA1 specifications
ParameterValue
SeriesOptiMOS™
FET typeN-Channel
MountingSurface Mount
Drain to source voltage30 V
Drive voltage (Max rds on, min rds on)4.5V, 10V
Current - continuous drain (Id) @ 25°C28A (Ta), 100A (Tc)
Power dissipation2.5W (Ta), 69W (Tc)
Operating temperature-55°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Case8-PowerTDFN
Vgs(th) (Max) @ id2V @ 250µA
Rds on (Max) @ id, vgs1.9mOhm @ 30A, 10V
Gate charge (Qg) (Max) @ vgs44 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds2800 pF @ 15 V

Product details

30 V N-channel MOSFET, 1.9 mOhm — conduction loss in a 30 A rail

Input capacitance is 2800 pF at 15 V Vds, so the gate-driver output impedance should be sized to hit the target rise time without ringing.

Thermal and package — the 100 A case rating needs a heatsink

The ambient-rated current of 28 A (Ta) is what you get with natural convection on a standard footprint. Maximum power dissipation is 2.5 W at ambient and 69 W at the case, so the thermal design determines how much of the 100 A headroom you can actually use. The 8-PowerTDFN package (supplier code PG-TDSON-8-5) is a surface-mount Power-SO8-like footprint with an exposed drain pad on the bottom. The gate threshold voltage is 2 V maximum at 250 µA, so the part can be driven from a 3.3 V logic rail, though the 4.5 V minimum drive voltage for the rated Rds(on) means a 5 V gate drive gets you closer to the 1.9 mOhm number.

ROHS3 compliant.
