Infineon iMOTION series IRMCK099MTR, Controller - Commutation, Direction Management, 3V ~ 3.6V supply, I²C, RS-232 interface, -40°C ~ 125°C, 32-WFQFN Exposed Pad, Surface Mount.
| Parameter | Value |
|---|---|
| Series | iMOTION™ |
| Mounting | Surface Mount |
| Motor type - AC, DC | AC, Synchronous |
| Supply voltage | 3V ~ 3.6V |
| Interface | I²C, RS-232 |
| Operating temperature | -40°C ~ 125°C (TA) |
| Package | Cut Tape (CT) |
| Function | Controller - Commutation, Direction Management |
| Technology | Power MOSFET |
| Applications | Appliance |
| Case | 32-WFQFN Exposed Pad |
| Output configuration | Pre-Driver - Half Bridge (3) |
The Infineon IRMCK099MTR is a commutation and direction management controller from the iMOTION series, designed for AC and synchronous motors. It integrates a pre-driver configured as a half-bridge for three phases, handling the commutation logic and direction control for appliance-class motor drives.
Communication is via I²C and RS-232, typical for parameter tuning and diagnostics in a motor-drive BOM.

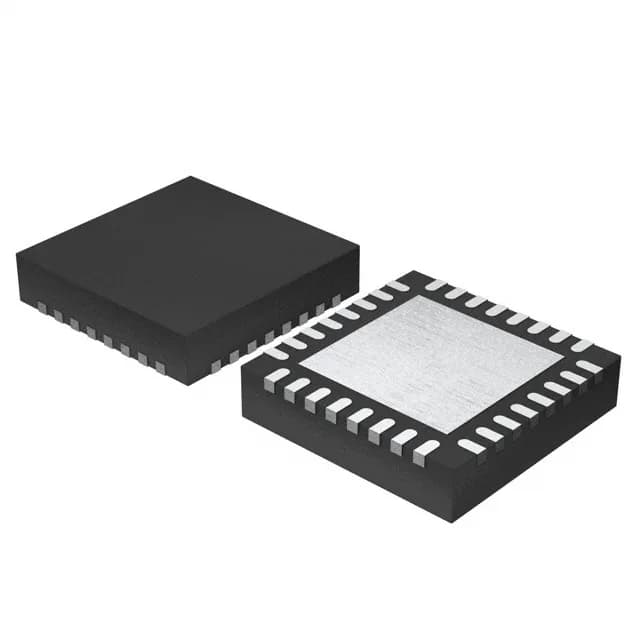

The IRMCK099MTR is in a 32-WFQFN exposed pad package, supplier device package 32-QFN, for surface-mount assembly.
