Infineon Technologies IPTG111N20NM3FDATMA1 — Logic ICs
Infineon Technologies

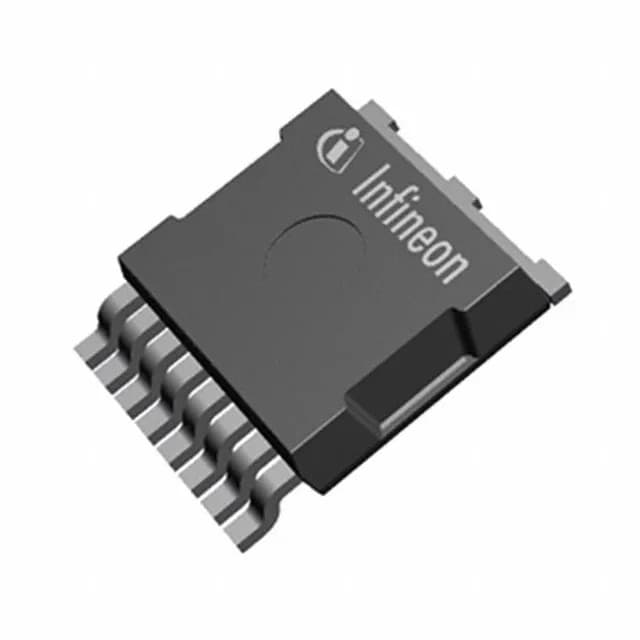

Infineon IPTG111N20NM3FDATMA1 N-Channel MOSFET, 200 V

MPNIPTG111N20NM3FDATMA1
End of Life

Infineon OptiMOS™ 3 N-Channel MOSFET, 200 V Vdss, 11.1 mOhm Rds(on) at 10 V, 108 A continuous drain (Tc), 81 nC gate charge, PG-HSOG-8-1 surface mount, -55°C to 175°C junction.

$9.5Ref. price · indicative, final on quote
IPTG111N20NM3FDATMA1 datasheet
Packaging8-PowerSMD, Gull Wing
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

IPTG111N20NM3FDATMA1 Technical Specifications
ParameterValue
SeriesOptiMOS™ 3
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage200 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C10.8A (Ta), 108A (Tc)
Power dissipation3.8W (Ta), 375W (Tc)
Operating temperature-55°C ~ 175°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Case8-PowerSMD, Gull Wing
Vgs(th) (Max) @ id4V @ 267µA
Rds on (Max) @ id, vgs11.1mOhm @ 96A, 10V
Gate charge (Qg) (Max) @ vgs81 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds7000 pF @ 100 V

Product details

Infineon IPTG111N20NM3FDATMA1 OptiMOS™ 3 N-Channel MOSFET, 200 V Vdss, 11.1 mOhm Rds(on) at 10 V. The continuous drain current is rated 108 A when the case temperature is held at 25°C, but derates to 10.8 A at ambient — a reminder that the package alone (PG-HSOG-8-1) cannot shed the heat of a 100 A load without a proper heatsink or forced airflow.

Gate charge and switching

With a gate charge of 81 nC at 10 V, this MOSFET sits in the moderate range for a 200 V device. That means the gate driver does not need to supply excessive peak current to hit fast switching edges, but the switching losses still need to be budgeted in a hard-switched topology. The input capacitance is 7000 pF at 100 V drain-source, which influences the driver's sink/source capability and the turn-on delay.

Package and thermal reality

The PG-HSOG-8-1 is an 8-lead PowerSMD with gull-wing leads — a surface-mount package that relies on the PCB copper pour and thermal vias to pull heat from the exposed pad. The datasheet lists 3.8 W dissipation at ambient and 375 W at case, so the board layout determines how much current you can actually push. MSL 3 handling applies: bake before reflow if the moisture-barrier bag has been open past the floor-life window.

Lifecycle and compliance

Infineon lists this part as Active in the product portfolio, and it is ROHS3 compliant.

Frequently asked questions

What is the maximum junction temperature of IPTG111N20NM3FDATMA1?

The maximum junction temperature is 175°C, allowing operation in high-temperature environments such as automotive under-hood or industrial power supplies.
