Infineon Technologies IPL60R160CFD7AUMA1
Infineon Technologies

Infineon IPL60R160CFD7AUMA1 CoolMOS CFD7 N-Ch 600V 16A

MPNIPL60R160CFD7AUMA1
End of Life

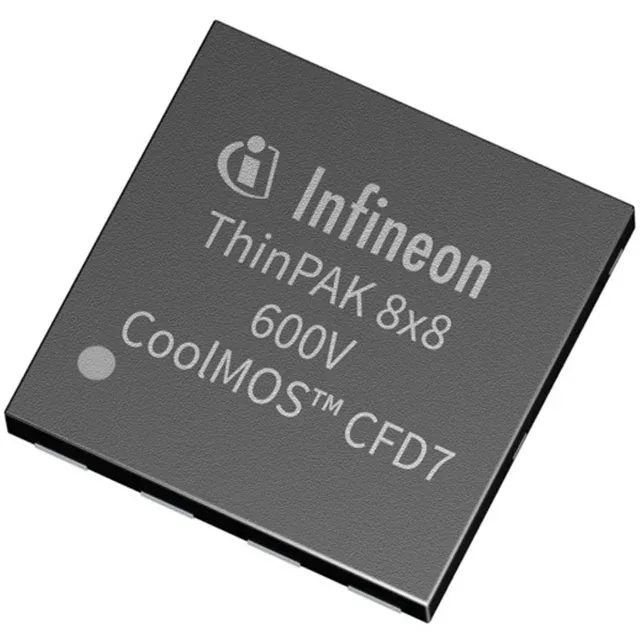

Infineon CoolMOS™ CFD7, N-Channel MOSFET, 600 V Vdss, 16 A Id @ 25°C, 160 mOhm Rds(on) @ 10 V, 31 nC Qg, PG-VSON-4, -40°C to 150°C Tj.

$3.44Ref. price · indicative, final on quote
IPL60R160CFD7AUMA1 datasheet
Packaging4-PowerTSFN
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

IPL60R160CFD7AUMA1 Technical Specifications
ParameterValue
SeriesCoolMOS™ CFD7
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage600 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C16A (Tc)
Power dissipation95W (Tc)
Operating temperature-40°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Case4-PowerTSFN
Vgs(th) (Max) @ id4.5V @ 340µA
Rds on (Max) @ id, vgs160mOhm @ 6.8A, 10V
Gate charge (Qg) (Max) @ vgs31 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds1330 pF @ 400 V

Product details

Gate charge and switching frequency — sizing the driver

The IPL60R160CFD7AUMA1: Total gate charge is 31 nC at 10 V, with an input capacitance of 1330 pF at 400 V drain-source. The 4-PowerTSFN / PG-VSON-4 package keeps source inductance low.

Thermal budget — 95 W at the case

The junction-to-case thermal resistance is not listed directly, but the 95 W ceiling means the copper area under the PG-VSON-4 package and any heatsinking must be sized to keep the junction below 150°C at full load. This part is rated for industrial and automotive environments where the ambient can push the junction near its limit.

ROHS3 compliant.

Frequently asked questions

What is the Rds(on) of IPL60R160CFD7AUMA1?

Maximum on-resistance is 160 mOhm at 6.8 A drain current with 10 V gate-to-source drive. This is the specification for conduction loss calculations in a 600 V-class switching converter.
