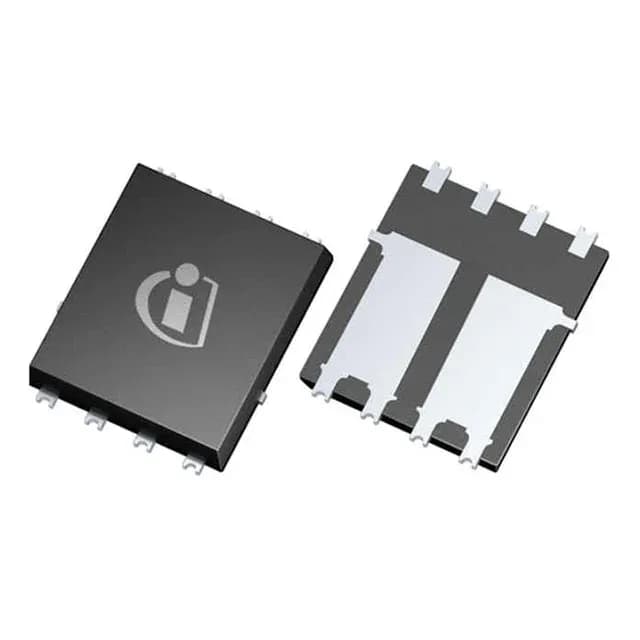

Infineon Technologies IPG20N04S4L18AATMA1
Infineon Technologies

IPG20N04S4L18AATMA1 OptiMOS-T2 Automotive Dual N-Ch MOSFET

MPNIPG20N04S4L18AATMA1
End of Life

Infineon OptiMOS™-T2 series, IPG20N04S4L18AATMA1, Dual N-Channel MOSFET, 40V Vdss, 20A Id, 18mOhm Rds(on) @ 10V, AEC-Q101, -55 to 175°C, PG-TDSON-8-10 package.

$1.0Ref. price · indicative, final on quote
IPG20N04S4L18AATMA1 datasheet
Packaging8-PowerVDFN
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

IPG20N04S4L18AATMA1 Technical Specifications
ParameterValue
SeriesOptiMOS™-T2
Mounting typeSurface Mount, Wettable Flank
Drain to source voltage40V
Current - continuous drain (Id) @ 25°C20A (Tc)
Power - max26W (Tc)
Operating temperature-55°C ~ 175°C (TJ)
GradeAutomotive
PackageTape & Reel (TR); Cut Tape (CT)
TechnologyMOSFET (Metal Oxide)
Configuration2 N-Channel (Dual)
QualificationAEC-Q101
Case8-PowerVDFN
Vgs(th) (Max) @ id2.2V @ 8µA
Rds on (Max) @ id, vgs18mOhm @ 17A, 10V
Gate charge (Qg) (Max) @ vgs15nC @ 10V
Input capacitance (Ciss) (Max) @ vds1071pF @ 25V

Product details

Dual N-channel 40 V MOSFET for automotive and industrial loads

The IPG20N04S4L18AATMA1: The device is AEC-Q101 qualified and carries an automotive grade rating, making it suitable for under-hood and chassis-domain electronics where reliability over a wide temperature range is mandatory.

Thermal and switching characteristics for harsh environments

Gate charge totals 15 nC at 10 V, and input capacitance is 1071 pF at 25 V drain-source bias — these numbers define the gate-drive power and switching speed budget for a given PWM frequency. Maximum power dissipation is 26 W at case temperature, which sets the thermal design constraint for the PCB copper area and heatsinking.

Package and mounting for automated assembly

Housed in an 8-lead PowerVDFN package (PG-TDSON-8-10) with wettable flanks, the part supports automated optical inspection (AOI) of solder joints — a requirement for automotive production lines. Surface-mount assembly with wettable flanks improves solder-joint reliability under vibration and thermal cycling compared to standard flat-lead packages.

Lifecycle and compliance status

ROHS3 compliant, with no known PCN or EOL activity at the time of writing.

Frequently asked questions

What is the closest pin-compatible alternative to IPG20N04S4L18AATMA1 in this component family?

Within the OptiMOS-T2 family, the IPG20N04S4L18AATMA1 is a specific dual-channel variant with 40 V / 20 A rating in PG-TDSON-8-10.
