Infineon Technologies IPF042N10NF2SATMA1
Infineon Technologies

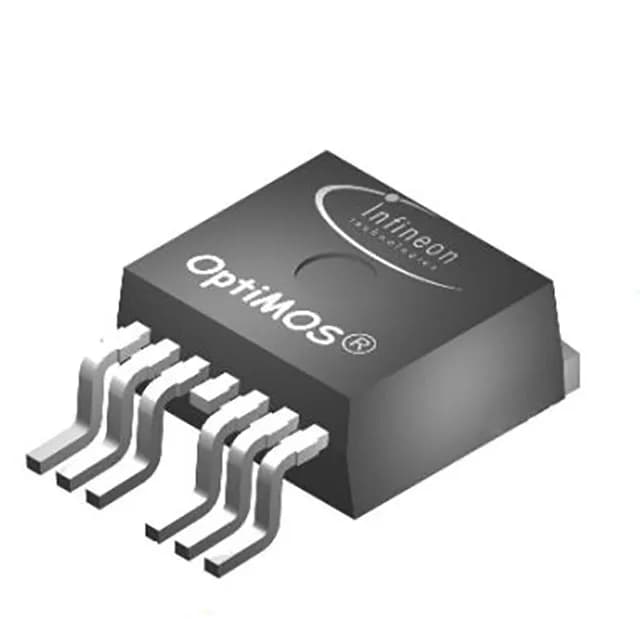

Infineon IPF042N10NF2SATMA1 N-Channel MOSFET, 100 V

MPNIPF042N10NF2SATMA1
End of Life

Infineon StrongIRFET™ 2 series, N-Channel MOSFET, IPF042N10NF2SATMA1, 100 V Vdss, 4.25 mOhm Rds(on) at 80 A, 10 V, 139 A continuous drain, PG-TO263-7 package, -55°C to 175°C junction temperature.

$2.42Ref. price · indicative, final on quote
IPF042N10NF2SATMA1 datasheet
PackagingPG-TO263-7
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

IPF042N10NF2SATMA1 Technical Specifications
ParameterValue
SeriesStrongIRFET™ 2
FET typeN-Channel
Mounting typeSurface Mount
Drain to source voltage100 V
Drive voltage (Max rds on, min rds on)6V, 10V
Current - continuous drain (Id) @ 25°C21A (Ta), 139A (Tc)
Power dissipation3.8W (Ta), 167W (Tc)
Operating temperature-55°C ~ 175°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±20V
TechnologyMOSFET (Metal Oxide)
Vgs(th) (Max) @ id3.8V @ 93µA
Rds on (Max) @ id, vgs4.25mOhm @ 80A, 10V
Gate charge (Qg) (Max) @ vgs85 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds4000 pF @ 50 V

Product details

100 V, 4.25 mOhm — sizing the conduction loss

The IPF042N10NF2SATMA1 is an Infineon StrongIRFET™ 2 N-channel power MOSFET rated for 100 V drain-source and 139 A continuous drain at the case. The 4.25 mOhm max Rds(on) at 80 A, 10 V gate drive sets the conduction loss floor.

Gate charge and switching speed trade-offs

Total gate charge is 85 nC at 10 V, with input capacitance of 4000 pF at 50 V Vds.

PG-TO263-7 — rework and footprint notes

The PG-TO263-7 (D2PAK variant) is a surface-mount package with an exposed thermal pad on the bottom.
