Active production — what it means for your BOM line
The IM241S6T2JAKMA1 carries an Active product status from Infineon, which means the factory is still running this part and it is available for new designs and production builds without a last-time-buy clock. It is fully ROHS3 compliant, so no exemption expiry or transition paperwork to track for EU-market equipment.
600 V, 2 A, 3-phase inverter — sizing the load

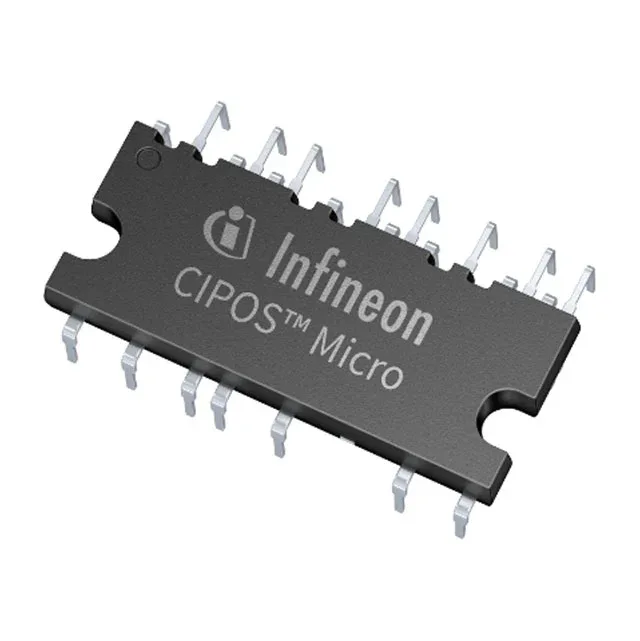

This is a 600 V, 2 A IGBT configured as a 3-phase inverter bridge in a single PG-DIP-23 module — it integrates six IGBTs with their freewheeling diodes in a compact through-hole package, sized for low-power motor drives, fan and pump controls, and small compressor inverters. The 2000 Vrms isolation rating between the control side and the power stage means it can sit on a low-voltage control board while switching a 400 VDC bus, simplifying the PCB layout for galvanic separation.
PG-DIP-23 footprint — board integration
The 23-DIP module (0.573" body width, 14.55 mm length) is a through-hole package with a standard 2.54 mm pin pitch — it fits into a single-sided or double-sided PCB without requiring a press-fit or SMD reflow profile, which keeps assembly straightforward for low-to-medium volume builds. The CIPOS Micro series positions this module for space-constrained drives where a discrete IGBT + gate-driver + bootstrap layout would take up more board area and add BOM complexity.
