Infineon Technologies IM241M6S1BAUMA1 — Discrete Semiconductors

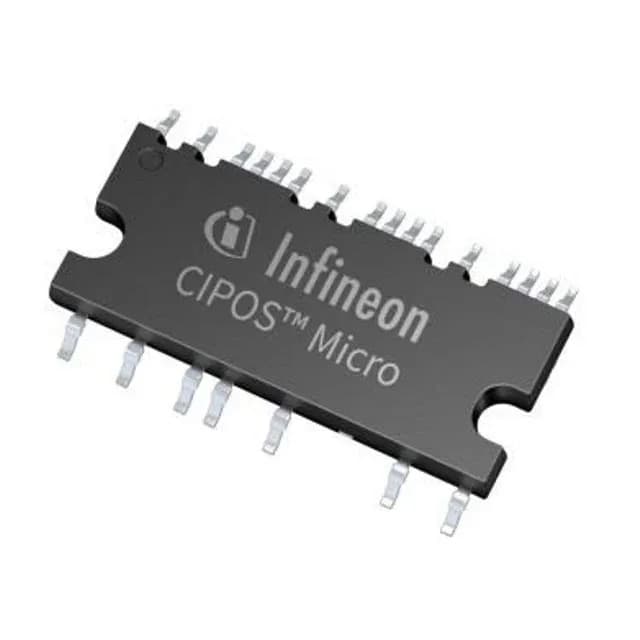

Infineon IM241M6S1BAUMA1 CIPOS™ IGBT

MPNIM241M6S1BAUMA1
End of Life

Infineon CIPOS™ series, IGBT, 3-Phase Inverter, 4 A, 600 V, 2000 Vrms Isolation, 23-PowerSMD Module Gull Wing, Surface Mount, ROHS3 Compliant.

$8.71Ref. price · indicative, final on quote
Infineon Technologies IM241M6S1BAUMA1 datasheet (PDF)
Packaging23-PowerSMD Module, Gull Wing
RoHSROHS3 Compliant
SeriesCIPOS™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

IM241M6S1BAUMA1 specifications
ParameterValue
TypeIGBT
SeriesCIPOS™
MountingSurface Mount
Voltage600 V
Voltage - isolation2000Vrms
Current4 A
PackageTape & Reel (TR); Cut Tape (CT)
Configuration3 Phase Inverter
Case23-PowerSMD Module, Gull Wing

Product details

What this CIPOS™ micro module is

It integrates six IGBTs with freewheeling diodes and a bootstrap diode for the high-side gate drive into a single surface-mount package. The 2000 Vrms isolation rating separates the power stage from the control interface, which simplifies layout in mains-isolated motor drives, fan controllers, and pump inverters.

The 23-PowerSMD Module with gull-wing leads is a surface-mount part — reflow-solderable, no through-hole holes needed. The gull-wing form factor gives a visual solder-joint inspection opportunity, unlike a QFN. Mount it on a multi-layer board with a dedicated thermal land to keep junction temperatures within limits at 4 A.

Sourcing posture

No LTB or allocation risk is known for this active-code entry.

Frequently asked questions

Where can I buy IM241M6S1BAUMA1?

The IM241M6S1BAUMA1 is available to order through independent distribution. Submit an RFQ for current pricing and availability — stock and lead time are confirmed at quote time.

What is IM241M6S1BAUMA1's listed type and series?

It is an IGBT in the CIPOS™ series, configured as a 3-phase inverter.

What is the pin configuration of IM241M6S1BAUMA1?

The module has 23 pins in a PowerSMD gull-wing package. The pinout includes three-phase outputs, DC bus connections, and gate-drive inputs — refer to the Infineon datasheet for the exact pin map.

Is IM241M6S1BAUMA1 compatible with lead-free reflow soldering?

Yes. The part is ROHS3 compliant and the gull-wing leads are compatible with standard lead-free reflow profiles.
