Infineon Technologies IKCM20R60GDXKMA1 — Discrete Semiconductors
Infineon Technologies

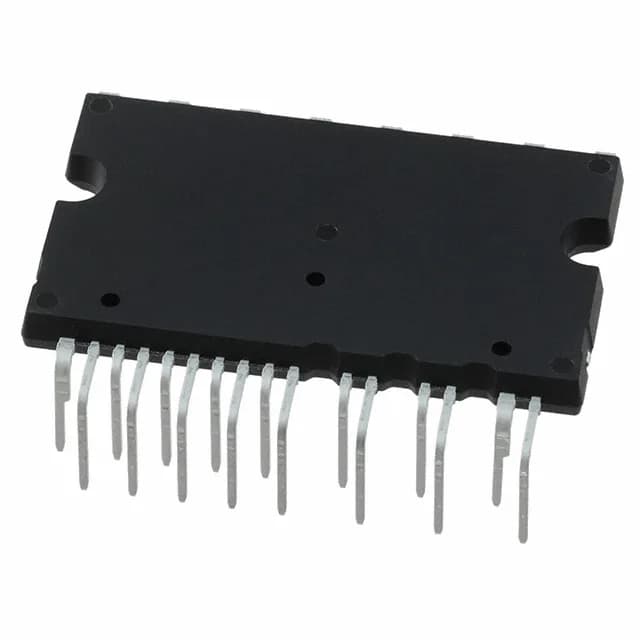

Infineon IKCM20R60GDXKMA1 CIPOS IGBT Module, 600V 20A

MPNIKCM20R60GDXKMA1
End of Life

Infineon CIPOS™ series, IGBT Module, 2 Phase, 20 A, 600 V, 2000Vrms Isolation, Through Hole, 24-PowerDIP Module, ROHS3 Compliant.

$18.53Ref. price · indicative, final on quote
IKCM20R60GDXKMA1 datasheet
Packaging24-PowerDIP Module (1.028", 26.10mm)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

IKCM20R60GDXKMA1 Technical Specifications
ParameterValue
TypeIGBT
SeriesCIPOS™
Mounting typeThrough Hole
Voltage600 V
Voltage - isolation2000Vrms
Current20 A
PackageTube
Configuration2 Phase
Case24-PowerDIP Module (1.028\", 26.10mm)

Product details

What this CIPOS™ module is and where it fits

The Infineon IKCM20R60GDXKMA1 is a 600 V, 20 A IGBT module in the CIPOS™ family, configured as a 2-phase half-bridge in a 24-PowerDIP through-hole package. It integrates the gate drive and IGBTs in one module, so the BOM keeps the power stage compact — no external bootstrap diodes or separate gate resistors to route. The 2000 Vrms isolation rating means it can sit on the same PCB as the control logic without a separate optocoupler or isolated supply per phase, which simplifies the layout in motor drives, inverters, and industrial power stages.

Lifecycle and sourcing posture

The IKCM20R60GDXKMA1 is listed as Active with ROHS3 compliance. No end-of-life notice is on record, so it is safe to qualify into new production runs.

Frequently asked questions

Can IKCM20R60GDXKMA1 be used for motor control applications?

Yes, the 2-phase IGBT configuration with 600 V, 20 A rating and 2000 Vrms isolation is designed for motor drives, inverters, and industrial power stages.
