Infineon Technologies CYPD3175-24LQXQ — Discrete Semiconductors
Infineon Technologies

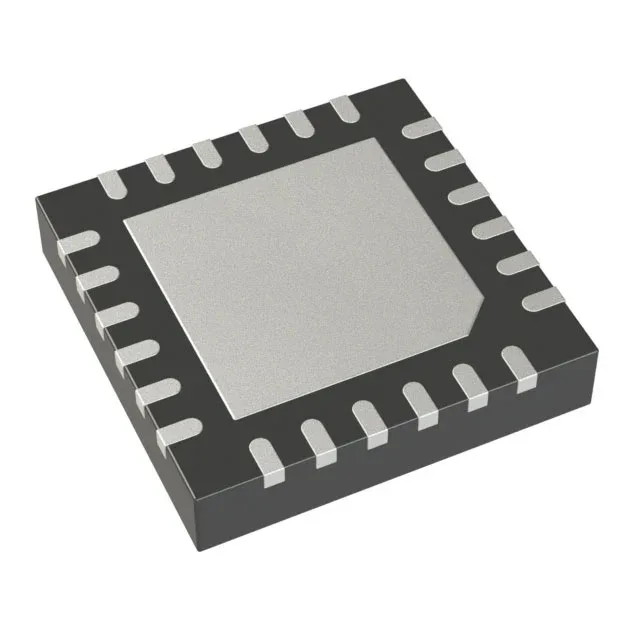

Infineon CYPD3175-24LQXQ USB Type-C Controller, 24-QFN

MPNCYPD3175-24LQXQ
End of Life

Infineon Technologies EZ-PD™ CCG3PA USB Type-C controller, ARM® Cortex®-M0 core, 64kB FLASH, 8K x 8 RAM, I²C/SPI/UART interface, 12 I/O, 24-UFQFN Exposed Pad, -40°C to 105°C.

$2.2Ref. price · indicative, final on quote
CYPD3175-24LQXQ datasheet
Packaging24-UFQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CYPD3175-24LQXQ Technical Specifications
ParameterValue
SeriesEZ-PD™ CCG3PA
Mounting typeSurface Mount
Program memory typeFLASH (64kB)
Voltage3V ~ 24.5V
InterfaceI²C, SPI, UART
Operating temperature-40°C ~ 105°C (TA)
PackageTray
RAM size8K x 8
ApplicationsUSB Type C
Number of i (O)12
Core processorARM® Cortex®-M0
Case24-UFQFN Exposed Pad

Product details

Active production, RoHS3, and the EZ-PD CCG3PA family

The CYPD3175-24LQXQ: It belongs to the EZ-PD™ CCG3PA series, Infineon's USB Type-C controller family targeting power delivery and role-swap applications.

ARM Cortex-M0 core with 64kB flash and 8K x 8 RAM

The core processor is an ARM® Cortex®-M0, paired with 64kB of FLASH program memory and 8K x 8 of RAM — enough headroom for the USB PD stack plus a modest application layer without external memory.

The supply voltage spans 3 V to 24.5 V, covering the full USB PD voltage range from 5 V up to 20 V with margin for transients — no external regulator needed for the controller itself across the common PD profiles.
