Cypress EZ-PD™ CCG2 series, USB Type-C controller, ARM® Cortex®-M0 32-bit MCU, 32KB FLASH, 4K x 8 RAM, 14 I/O, I²C/SPI/UART/USB interface, 1.71V~5.5V supply, -40°C~85°C, 24-UFQFN Exposed Pad package.
| Parameter | Value |
|---|---|
| Series | EZ-PD™ CCG2 |
| Mounting type | Surface Mount |
| Program memory type | FLASH (32KB) |
| Voltage | 1.71V ~ 5.5V |
| Interface | I²C, SPI, UART/USART, USB |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| RAM size | 4K x 8 |
| Applications | USB Type C |
| Number of i (O) | 14 |
| Core processor | ARM® Cortex®-M0 |

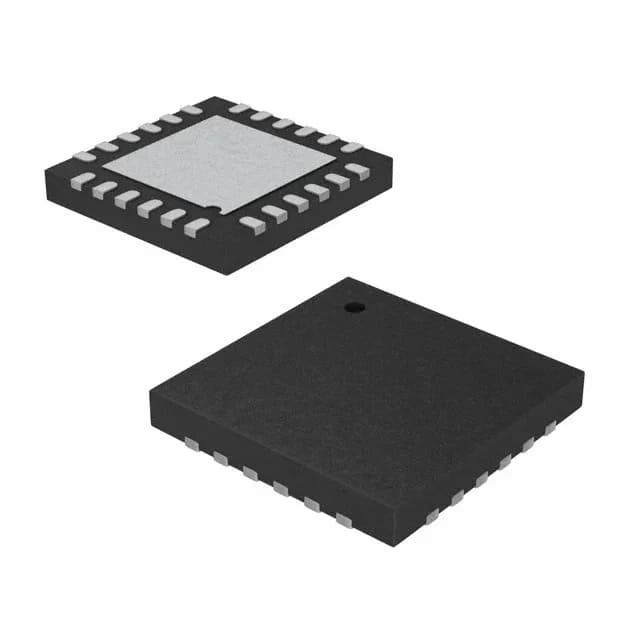

| Case | 24-UFQFN Exposed Pad |
The CYPD2122-24LQXIT is a USB Type-C controller integrating an ARM Cortex-M0 processor with 32KB Flash and 4K x 8 RAM. It handles USB Power Delivery negotiation and cable orientation detection.
Rated for -40°C to 85°C ambient, the CYPD2122-24LQXIT suits outdoor telecom, industrial USB hubs, and panel-mount HMI ports. The 4x4 mm QFN package keeps the footprint small for space-constrained designs.
This part is available to order through independent distribution. Submit an RFQ for current pricing and availability — both are confirmed at quote time and vary with market conditions.
Yes, it is ROHS3 compliant, meeting the latest EU restriction requirements without exemptions.
Within the EZ-PD CCG2 family, the base ordering code CYPD2122-24LQXI is the tray-packed equivalent. The only difference is the packaging format — the 'T' suffix on this part denotes tape-and-reel for automated assembly.
