Infineon Technologies CY8C4248LQI-BL583T — Logic ICs
Infineon Technologies

CY8C4248LQI-BL583T PSoC 4 BLE MCU, 48MHz Cortex-M0

MPNCY8C4248LQI-BL583T
End of Life

Infineon PSOC® 4 CY8C4xx8 BLE series, ARM® Cortex®-M0, 32-Bit Single-Core, 48MHz, 256KB Flash, 32K x 8 RAM, Bluetooth, CapSense, 36 I/O, 1.71V ~ 5.5V, -40°C ~ 85°C, 56-UFQFN Exposed Pad.

$8.32Ref. price · indicative, final on quote
CY8C4248LQI-BL583T datasheet
Packaging56-UFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CY8C4248LQI-BL583T Technical Specifications
ParameterValue
SeriesPSOC® 4 CY8C4xx8 BLE
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 5.5V
Operating temperature-40°C ~ 85°C (TA)
Speed48MHz
PackageTape & Reel (TR); Cut Tape (CT)
RAM size32K x 8
Core size32-Bit Single-Core
PeripheralsBluetooth, Brown-out Detect/Reset, Cap Sense, DMA LCD, LVD, POR, PWM, SmartCard, SmartSense, WDT
ConnectivityI2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Number of i (O)36
Core processorARM® Cortex®-M0
Case56-UFQFN Exposed Pad
Data convertersA/D 16x12b SAR; D/A 2xIDAC
Program memory size256KB (256K x 8)

Product details

48 MHz Cortex-M0 — enough for BLE + sensor fusion

The CY8C4248LQI-BL583T: The 48 MHz ARM Cortex-M0 core handles the Bluetooth LE stack and CapSense processing load.

Bluetooth and CapSense — the key integrated peripherals

This part includes an integrated Bluetooth LE radio, CapSense touch-sensing hardware, brown-out detect, POR, LVD, PWM, and a SmartCard interface.

56-QFN 7x7 mm — footprint and thermal considerations

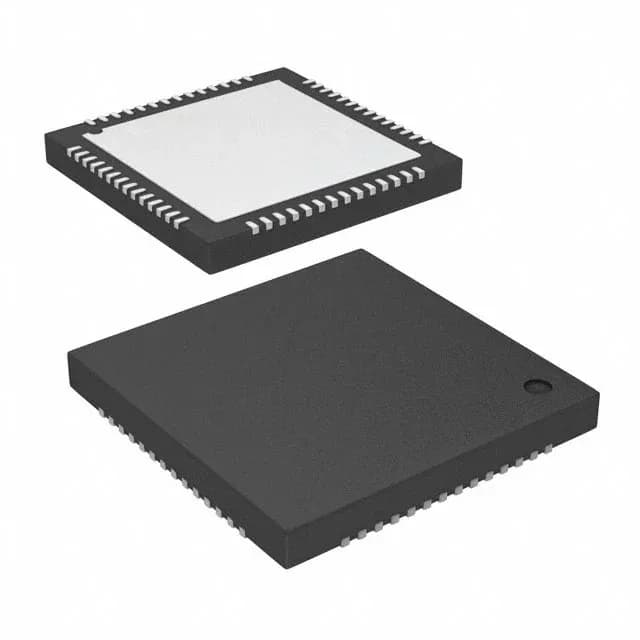

The device is housed in a 56-UFQFN exposed-pad package (7x7 mm body).

It is ROHS3 compliant and remains in volume production with no announced last-time-buy.

Frequently asked questions

What is the equivalent part for CY8C4248LQI-BL583T?

The closest functional second-source within the same PSoC 4 BLE family is the CY8C4247LQI-BL473. It shares the same ARM Cortex-M0 core at 48 MHz, the same 56-QFN 7x7 mm package, 36 I/O, and the same connectivity and peripheral set including Bluetooth and CapSense. The main difference is Flash size: 128 KB on the CY8C4247 versus 256 KB on the CY8C4248, and the ADC is 8x12b instead of 16x12b. If your firmware fits in 128 KB, it is a drop-in alternate.

Does CY8C4248LQI-BL583T support Bluetooth 5.0?

No, the Bluetooth peripheral integrated in this MCU is Bluetooth 4.2 compliant. It does not support Bluetooth 5.0 features such as 2 Mbps PHY, long-range coding (Coded PHY), or extended advertising. For Bluetooth 5.0 capability, consider the PSoC 6 series (e.g. CY8C6137BZI-F54) which runs a Cortex-M4 at 150 MHz and includes a BLE 5.0 radio, though it is a different package and pinout.
