Infineon Technologies CY8C4247LQI-BL473 — Microcontrollers & Processors (MCU / MPU / DSP)
Infineon Technologies

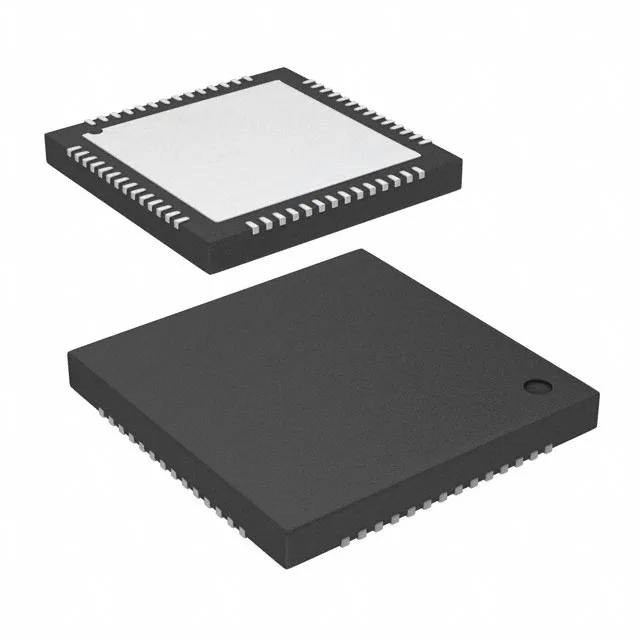

CY8C4247LQI-BL473 Infineon PSoC 4 BLE MCU, 48 MHz

MPNCY8C4247LQI-BL473
End of Life

Infineon Technologies PSoC® 4 CY8C4xx8 BLE ARM Cortex-M0 MCU, CY8C4247LQI-BL473, 48 MHz, 128 KB Flash, 16 KB RAM, 36 I/O, 56-UFQFN exposed pad, -40 to 85°C.

$6.3Ref. price · indicative, final on quote
CY8C4247LQI-BL473 datasheet
Packaging56-UFQFN Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CY8C4247LQI-BL473 Technical Specifications
ParameterValue
SeriesPSOC® 4 CY8C4xx8 BLE
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 5.5V
Operating temperature-40°C ~ 85°C (TA)
Speed48MHz
PackageTray
RAM size16K x 8
Core size32-Bit Single-Core
PeripheralsBluetooth, Brown-out Detect/Reset, LVD, POR, PWM, SmartCard, SmartSense, WDT
ConnectivityI²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Number of i (O)36
Core processorARM® Cortex®-M0
Case56-UFQFN Exposed Pad
Data convertersA/D 8x12b
Program memory size128KB (128K x 8)

Product details

Core and memory budget for BLE sensor nodes

The CY8C4247LQI-BL473 runs an ARM Cortex-M0 core at 48 MHz — enough throughput to service a BLE stack, CapSense scanning, and sensor polling without starving the radio link layer. 128 KB of flash and 16 KB of SRAM leave room for the Bluetooth protocol stack plus a modest application image; the 36 general-purpose I/O support parallel sensor inputs and display segments.

Peripheral set and connectivity for wireless control

On-chip Bluetooth, CapSense (SmartSense), PWM, and a watchdog timer cover the common blocks for a battery-powered wireless HMI or environmental monitor — no external BLE module needed. Wired interfaces include I²C, SPI, UART/USART, LIN, IrDA, and SmartCard — the part can bridge a BLE link to an industrial sensor bus or a legacy serial protocol.

Surface-mount assembly; the tray packaging is standard for volume reflow.

Frequently asked questions

How do I get current pricing and availability for CY8C4247LQI-BL473?

Submit an RFQ through this listing.

What compliance documentation does Infineon provide for CY8C4247LQI-BL473?

The part is ROHS3 compliant (no RoHS exemption expiry risk). Standard Infineon documentation includes the datasheet, application notes, and a CE declaration for the PSoC 4 BLE series.
