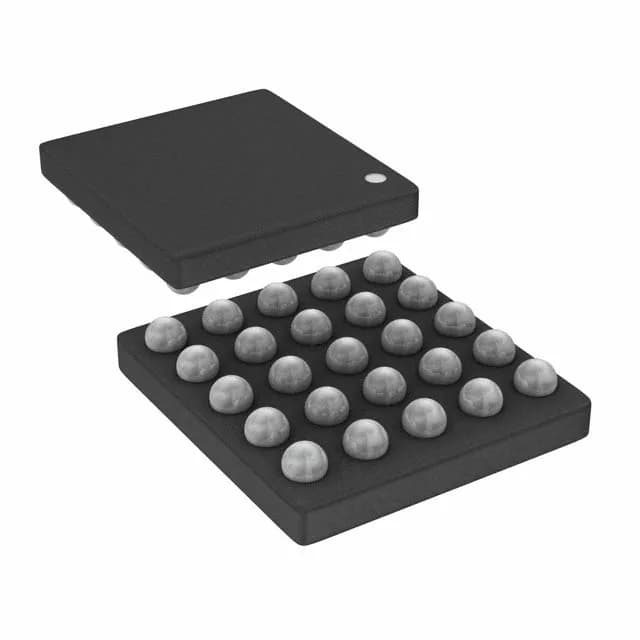

Infineon CY8C4024FNI-S402T PSoC 4 MCU, 24 MHz, 16 KB Flash

MPNCY8C4024FNI-S402T
End of Life

Infineon PSoC® 4 CY8C4000S series, ARM® Cortex®-M0+, 32-Bit Single-Core, 24MHz, 16KB (16K x 8) FLASH, 2K x 8 RAM, 25-XFBGA WLCSP, -40°C ~ 85°C (TA).

$2.29Ref. price · indicative, final on quote
CY8C4024FNI-S402T datasheet
Packaging25-XFBGA, WLCSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

CY8C4024FNI-S402T Technical Specifications
ParameterValue
SeriesPSOC® 4 CY8C4000S
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 5.5V
Operating temperature-40°C ~ 85°C (TA)
Speed24MHz
PackageTape & Reel (TR); Cut Tape (CT)
RAM size2K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT
ConnectivityI²C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Number of i (O)21
Core processorARM® Cortex®-M0+
Case25-XFBGA, WLCSP
Data convertersA/D 1x10b
Program memory size16KB (16K x 8)

Product details

24 MHz Cortex-M0+ with integrated CapSense — the space-constrained touch controller

The CY8C4024FNI-S402T integrates CapSense and LCD drive, handling touch sensing, segment LCD control, and general-purpose I/O on a compact control panel. The 25-WLCSP package (2.02 x 1.93 mm) is the smallest in the PSoC 4 family.

16 KB Flash and 2 KB SRAM suit a single-threaded control loop with moderate code size — a capacitive touch button panel with LED feedback, a basic sensor hub, or a simple motor/valve controller.

Industrial temperature grade and environment

The 25-WLCSP package is a direct-chip-attach footprint — no leads, no exposed pad — so board-level reliability depends on the PCB's solder-joint geometry and underfill choice if the assembly sees thermal cycling or vibration.

For a production BOM, this part carries zero obsolescence risk through at least the next several years. If you need a second-source or a drop-in alternate, there is no direct pin-compatible second source from another manufacturer — the PSoC 4 architecture is proprietary to Infineon.

Frequently asked questions

Can CY8C4024FNI-S402T run CapSense touch applications?

Yes. The CY8C4024FNI-S402T includes an integrated CapSense peripheral block, which is the same capacitive-sensing engine used across the PSoC 4 family. It supports buttons, sliders, proximity sensors, and matrix touchpads. The CapSense library is available in PSoC Creator and the ModusToolbox IDE.

What are the direct alternatives or equivalents for CY8C4024FNI-S402T?

There is no pin-compatible second source from another manufacturer. Within the Infineon PSoC 4 family, the closest functional equivalent with more headroom is the CY8C4245LQI-483, which runs at 48 MHz, has 32 KB Flash, 4 KB RAM, and 8x12b ADC, but comes in a larger 34-pin QFN package. For a smaller code base, the CY8C4024FNI-S402T is the value-optimized entry point.
