PSOC 3 — 8051 core with programmable analog
The Cypress CY8C3665PVI-008 is an 8-bit MCU from the PSOC® 3 CY8C36xx family, built around an 8051 core clocked at 67 MHz. The part integrates a 16-channel 12-bit ADC and four 8-bit DACs, plus CapSense, DMA, POR, PWM, and WDT peripherals — a single-chip solution for mixed-signal control applications.
67 MHz 8051 — what the clock means for throughput
At 67 MHz the 8051 pipeline executes most instructions in 1–4 clock cycles, giving roughly 16–67 MIPS depending on the opcode mix. That puts it ahead of legacy 8-bit parts running at 24–40 MHz and keeps it viable for real-time control loops — motor commutation, sensor fusion, or keypad scanning — without needing a 32-bit ARM core.
Rated for 1.71 V minimum supply, this part runs directly from a 1.8 V rail or a 3.3 V rail with an external LDO. No AEC-Q qualification is listed, so it stays in commercial/industrial BOMs.
Cypress (now Infineon) lists the CY8C3665PVI-008 as Active. For a BOM line that depends on this exact package and peripheral set, there is no immediate obsolescence pressure — though the PSOC 3 family has been superseded by PSOC 4 and PSOC 6 for new designs requiring ARM Cortex-M cores.
48-SSOP — footprint and layout considerations

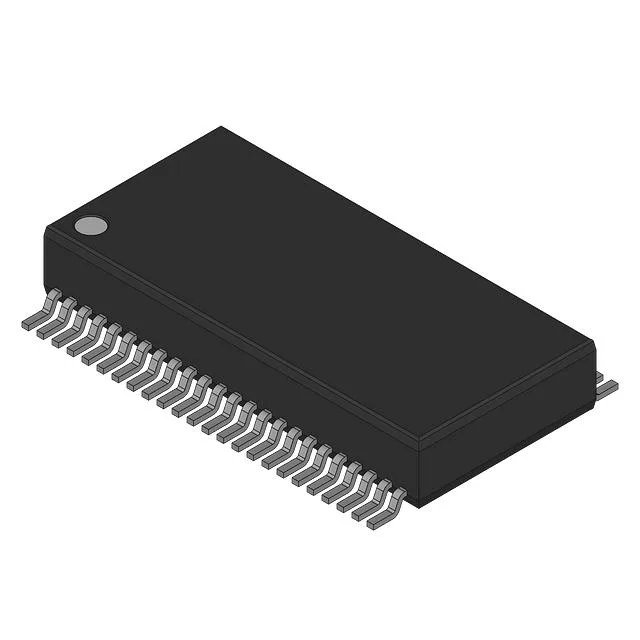

The 48-pin SSOP (0.635 mm pitch) is a surface-mount package that routes to two or four layers without microvias. With 25 I/O available, roughly half the pins are dedicated to power, ground, and analog functions. Decoupling should follow the recommended 0.1 µF per supply pin pair plus a 4.7 µF bulk cap — the internal oscillator and ADC benefit from a clean rail. No exposed thermal pad on this package; junction temperature is managed through the leadframe and PCB copper.
Standard serial interfaces include I2C, SPI, UART/USART, and LINbus — enough for sensor aggregation, actuator control, or communication with a host processor. The EBI/EMI port can interface to parallel LCDs, external SRAM, or FPGAs. CapSense is a Cypress differentiator: up to 25 capacitive touch channels can replace mechanical buttons or sliders without external ICs.
