CY8C3244AXI-153

Infineon Technologies · PSOC® 3 CY8C32xx Series

Infineon Technologies PSoC® 3 CY8C32xx 8-bit MCU, CY8C3244AXI-153, 8051 core at 50MHz, 16KB Flash, 2K x 8 RAM, 512 x 8 EEPROM, 62 I/O, 100-LQFP, -40°C to 85°C.

Infineon Technologies CY8C3244AXI-153
Download datasheet (PDF)
[ALLOC] Allocation Sourcing · Shortage Support
$0.54/ pc

Volume pricing

Buy Now

MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T

Technical specifications

CY8C3244AXI-153 specifications
Parameter / AttributeSpecification / Value
SeriesPSOC® 3 CY8C32xx
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 5.5V
Operating temperature-40°C ~ 85°C (TA)
Speed50MHz
PackageTray
RAM size2K x 8
Core size8-Bit
EEPROM size512 x 8
PeripheralsCapSense, DMA, POR, PWM, WDT
ConnectivityEBI/EMI, I2C, LINbus, SPI, UART/USART
Number of i (O)62
Core processor8051
Case100-LQFP
Data convertersA/D 16x12b; D/A 1x8b
Program memory size16KB (16K x 8)

Technical details

The CY8C3244AXI-153: With 62 I/O lines and integrated CapSense, DMA, PWM, and WDT peripherals, it targets human-interface panels, body electronics, and sensor hubs where the 8051 instruction set keeps the BOM simple.

Memory budget and analog front-end for a single-purpose controller

The 16-channel 12-bit ADC scans capacitive touch electrodes or analog sensor inputs, while the single 8-bit DAC provides a reference or control voltage — enough analog resolution for a capacitive slider or a 0-10 V output. Connectivity includes EBI/EMI for parallel bus expansion, plus I2C, SPI, LINbus, and UART/USART — the LIN interface makes this a natural fit for automotive body-node controllers.

Industrial temperature grade and rework-friendly package

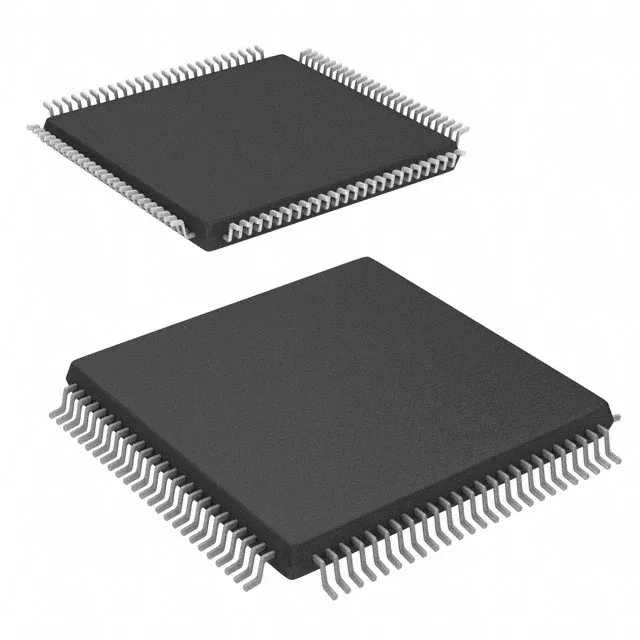

The 100-LQFP (also supplied as 100-TQFP 14x14 mm) is a standard fine-pitch gull-wing package — reworkable with a hot-air station and inspectable under a microscope, unlike a BGA that hides the joint.
