Infineon Technologies CapSense® Controllers series CY8C20436A-24LQXIT, M8C core, 8KB FLASH, 1K x 8 RAM, 28 I/O, I²C/SPI, 1.71V-5.5V, -40°C to 85°C, 32-UFQFN Exposed Pad, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | CapSense® Controllers |
| Mounting | Surface Mount |
| Controller series | CY8C20xx6A |
| Program memory type | FLASH (8kB) |
| Supply voltage | 1.71V ~ 5.5V |
| Interface | I²C, SPI |
| Operating temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| RAM size | 1K x 8 |
| Applications | Capacitive Sensing |
| Number of i (O) | 28 |
| Core processor | M8C |

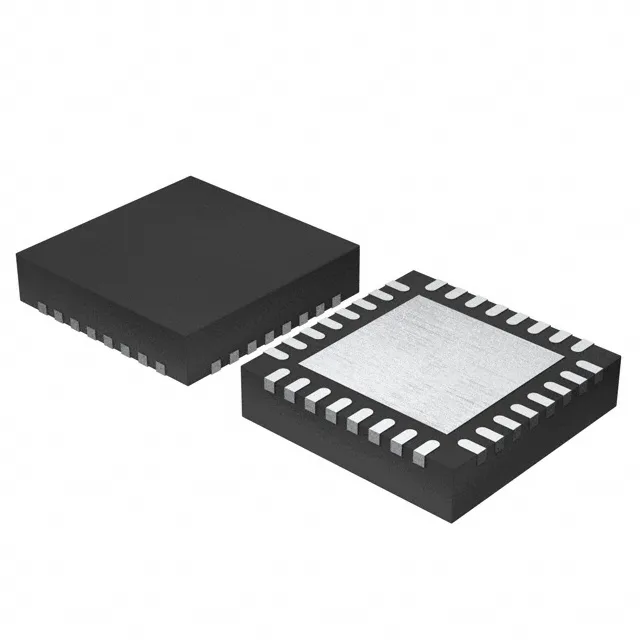

| Case | 32-UFQFN Exposed Pad |
The CY8C20436A-24LQXIT is a PSoC-based CapSense controller from Infineon, built around the 8-bit M8C core with 8KB of on-chip FLASH program memory and 1K x 8 bytes of RAM.
The wide Vdd range means the same BOM line can serve a battery-powered sensor running at 1.8V and a panel-mounted controller on a 5V rail, simplifying inventory.
No. The CYPD2122-24LQXIT uses an ARM Cortex-M0 core with USB Type-C support and a different pinout (14 I/O, 32KB flash). The CY8C20436A-24LQXIT is an 8-bit M8C CapSense controller — they are not pin-compatible and serve different application domains.
