Infineon BTS70082EPZXUMA1 PROFET, 9mOhm, 7.5A

MPNBTS70082EPZXUMA1
End of Life

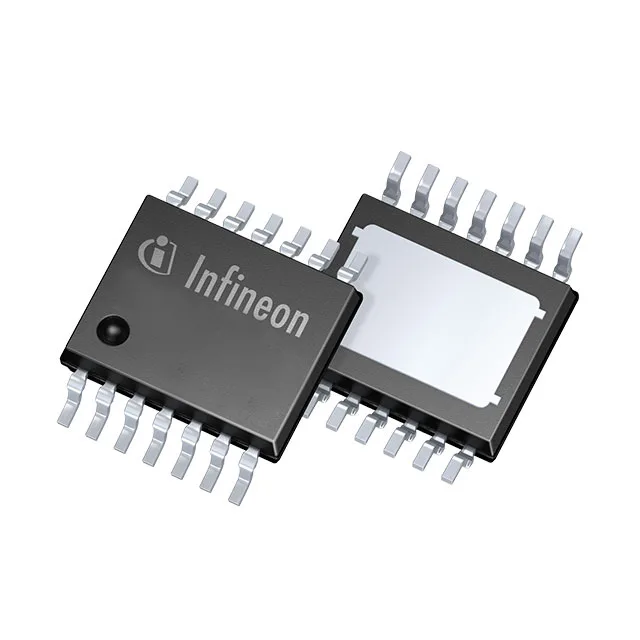

Infineon BTS70082EPZXUMA1 PROFET® automotive high-side power switch, dual-channel, 9mOhm Rds(on) typical, 7.5A max per output, 14-SOIC exposed pad, AEC-Q100 qualified.

$4.05Ref. price · indicative, final on quote
BTS70082EPZXUMA1 datasheet
Packaging14-SOIC (0.154", 3.90mm Width) Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

BTS70082EPZXUMA1 Technical Specifications
ParameterValue
SeriesAutomotive, AEC-Q100, PROFET®
Input typeNon-Inverting
Output typeN-Channel
Switch typeGeneral Purpose
Mounting typeSurface Mount
Voltage - load6V ~ 18V
Voltage - supply (Vcc (Vdd))Not Required
Current - output7.5A
Number of outputs2
InterfaceOn/Off
Operating temperature-40°C ~ 175°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSlew Rate Controlled
Rds on9mOhm
Case14-SOIC (0.154\", 3.90mm Width) Exposed Pad
Fault protectionOver Current, Over Temperature, Over Voltage, Short Circuit
Output configurationHigh Side
Ratio - Input:Output1:1

Product details

Active PROFET with 9 mOhm per channel

The Infineon BTS70082EPZXUMA1 is an active-production PROFET dual high-side power switch, AEC-Q100 qualified for automotive under-hood deployment.

Dual-channel high-side with integrated fault protection

Two independent high-side N-channel outputs, each rated 7.5 A max, switch loads from a 6V to 18V supply rail — covering the 12V automotive bus with margin for cold-crank dips and load-dump transients. The non-inverting input turns the channel on with a logic-high; no Vcc supply is required for the switch itself, simplifying the control-side bill of materials. Fault protection is integrated per channel: over-current, over-temperature, over-voltage, and short-circuit. The slew-rate controlled switching limits radiated EMI on long harness runs to the lamp or solenoid loads typical in body-control modules.

Automotive-grade compliance and supply posture

ROHS3 compliant per current directive.

Frequently asked questions

What is the Rds(on) of BTS70082EPZXUMA1?

The typical Rds(on) is 9 mOhm per channel, measured at 25°C. This is the conduction loss floor for the 7.5 A output rating.

What fault protection does BTS70082EPZXUMA1 include?

The device integrates over-current, over-temperature, over-voltage, and short-circuit protection per channel, with slew-rate controlled switching to manage EMI.
