Dual Schottky for RF detection and mixing

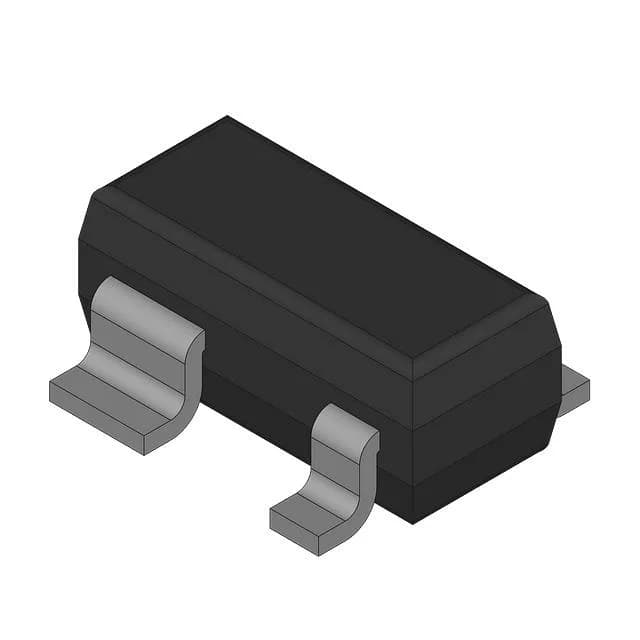

The Infineon BAT62E6327HTSA1 packs two independent Schottky diodes in a single PG-SOT-143-3D package, each rated for 40 V peak reverse voltage and a maximum forward current of 20 mA. Junction capacitance sits at 0.6 pF at 0 V bias, 1 MHz — low enough to keep RF signal paths clean in detector and mixer stages up into the UHF band. Total power dissipation is limited to 100 mW, so this is a small-signal part, not a rectifier. Typical deployment: RF power detection, envelope detection, mixer balancing, or level shifting in telecom infrastructure, test equipment, and wireless modules where board space is tight and two matched diodes save a second package.
Active production, no lifecycle concern
The BAT62E6327HTSA1 carries an Active product status from Infineon. No NRND flag, no last-time-buy notice. ROHS3 compliance is confirmed, so the part meets current EU exemption-free requirements.
