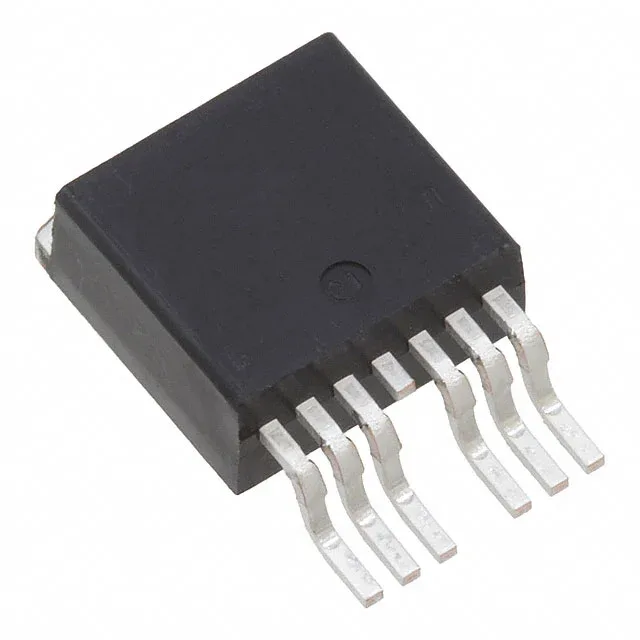

AUIRFS8407-7TRL - Infineon Technologies
MPNAUIRFS8407-7TRL
End of Life
MOSFET N-CH 40V 240A D2PAK
$3.9Ref. price · indicative, final on quote
PackagingTO-263-7, D²Pak (6 Leads + Tab)
RoHSROHS3 Compliant
SeriesHEXFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HEXFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 240A (Tc) |
| Power dissipation | 231W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Vgs(th) (Max) @ id | 3.9V @ 150µA |
| Rds on (Max) @ id, vgs | 1.3mOhm @ 100A, 10V |
| Gate charge (Qg) (Max) @ vgs | 225 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 7437 pF @ 25 V |
