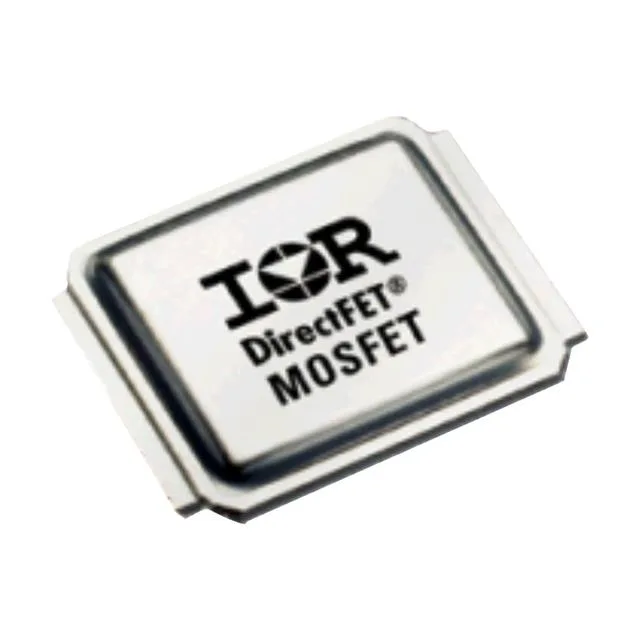

AUIRF7647S2TR - Infineon Technologies
MPNAUIRF7647S2TR
End of Life
MOSFET N-CH 100V 5.9A DIRECTFET
$2.25Ref. price · indicative, final on quote
PackagingDirectFET™ Isometric SC
RoHSROHS3 Compliant
SeriesHEXFET®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HEXFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 100 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 5.9A (Ta), 24A (Tc) |
| Power dissipation | 2.5W (Ta), 41W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | DirectFET™ Isometric SC |
| Vgs(th) (Max) @ id | 5V @ 50µA |
| Rds on (Max) @ id, vgs | 31mOhm @ 14A, 10V |
| Gate charge (Qg) (Max) @ vgs | 21 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 910 pF @ 25 V |
