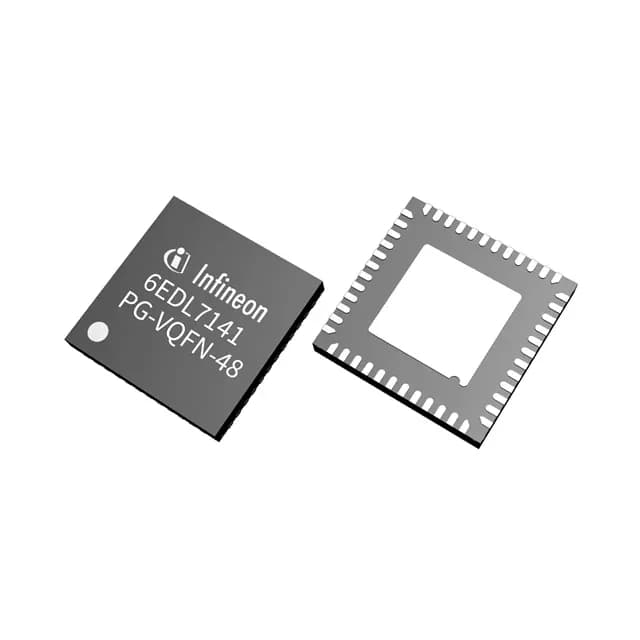

Infineon 6EDL7141XUMA1 3-Phase Smart Gate Drive Control, 3 half-bridge drivers, N-Channel MOSFET, 5.5V~60V supply, 1.5A peak source/sink, PG-VQFN-48-78, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Gate type | N-Channel MOSFET |
| Input type | Non-Inverting |
| Channel type | 3-Phase |
| Mounting type | Surface Mount |
| Voltage | 5.5V ~ 60V |
| Logic voltage - VIL, VIH | 0.8V, 2V |
| Current - peak output (Source, sink) | 1.5A, 1.5A |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 48-VFQFN Exposed Pad |
| Number of drivers | 3 |
| Driven configuration | Half-Bridge |
The 6EDL7141XUMA1 is supplied in Tape & Reel (TR) or Cut Tape (CT) format for the PG-VQFN-48-78 package. The exposed pad must be soldered to a thermal land on the PCB. Surface-mount assembly is assumed.
This part is listed as Active in production — no end-of-life notice or last-time-buy window is in effect. It is ROHS3 compliant, which covers the current EU RoHS exemption list.
