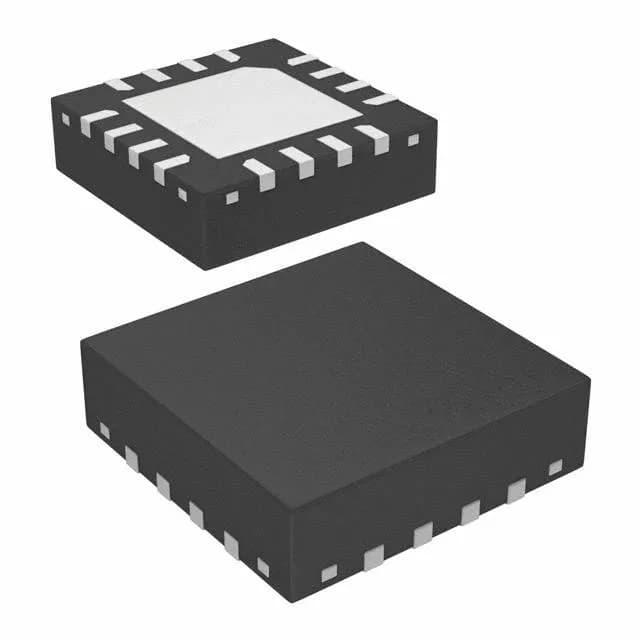

Holt Integrated Circuits Inc. HI-3002PCIF
MPN HI-3002PCIF
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
IC TRANSCEIVER HALF 1/1 16QFN
In Stock: 327 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$6.08 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$6.08
10+ pcs
$5.47
30+ pcs
$4.99
100+ pcs
$4.50
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (11)
Package / Case 16-VQFN Exposed Pad, CSP
Supply Voltage 4.75V ~ 5.25V
Full Technical Specifications
11 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Transceiver |
| Mounting | Surface Mount |
| Supply voltage | 4.75V ~ 5.25V |
| Protocol | CANbus |
| Operating temperature | -40°C ~ 85°C |
| Duplex | Half |
| Package | Tube |
| Data rate | 1Mbps |
| Case | 16-VQFN Exposed Pad, CSP |
| Receiver hysteresis | 120 mV |
| Number of drivers (Receivers) | 1/1 |
