Specifications
| Parameter | Value |
|---|---|
| Series | TrenchFET® |
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 100 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 4A (Tc) |
| Power dissipation | 1.2W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Standard |

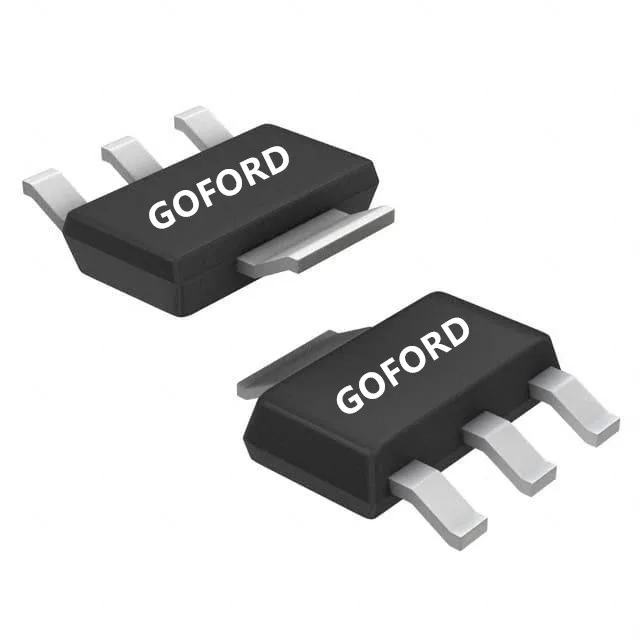

| Case | TO-261-4, TO-261AA |
| Vgs(th) (Max) @ id | 2.8V @ 250µA |
| Rds on (Max) @ id, vgs | 200mOhm @ 6A, 10V |
| Gate charge (Qg) (Max) @ vgs | 25 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1647 pF @ 50 V |
