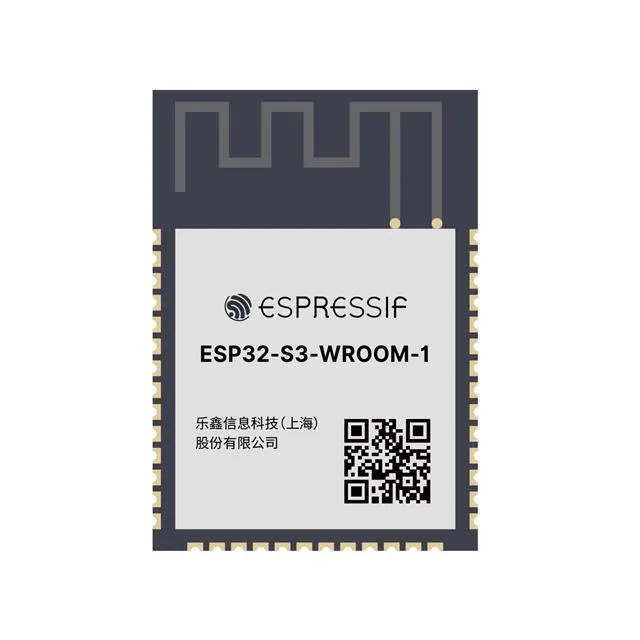

ESP32-S3-WROOM-1-N4
Espressif Systems
[IN STOCK] In Stock: 859 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | ESP32-S3 |
| Antenna type | PCB Trace |
| Mounting | Surface Mount |
| RF family | Bluetooth, WiFi |
| Supply voltage | 3V ~ 3.6V |
| Current - receiving | 95mA ~ 97mA |
| Current - transmitting | 285mA ~ 355mA |
| Power - output | 20.5dBm |
| Frequency | 2.4GHz |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
| Serial interfaces | ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Data rate | 150Mbps |
| Memory size | 4MB Flash, 384kB ROM |
| Sensitivity | -103.5dBm |
| Case | 41-SMD Module |
| Utilized IC (Part) | ESP32-S3 |
