Wi-Fi link budget and RF parametric fit

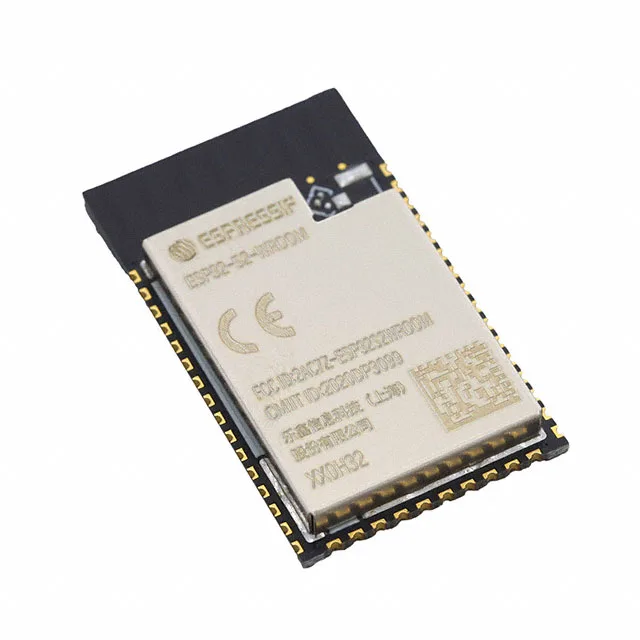

The ESP32-S2-WROOM-N4 delivers 19.5 dBm output power and -97 dBm receive sensitivity on 2.4 GHz 802.11b/g/n — a 116.5 dB link budget at 1 Mbps DSSS. At 150 Mbps MCS7 HT20 the sensitivity floor rises, but the TX power stays flat, so the range-limiting factor shifts to the receiver noise figure and antenna mismatch rather than the PA. Drawing 63-68 mA in receive and 160-310 mA in transmit (depending on output power), the module's current per link state is competitive for battery-powered IoT nodes that cycle between deep sleep and short burst transmissions.
NRND — planning for production continuity
Espressif lists the ESP32-S2-WROOM-N4 as NRND (Not Recommended for New Designs). New projects should evaluate the current-production ESP32-S2 family variants or the ESP32-S3 series for ongoing supply. The -40°C to 125°C operating range qualifies the module for industrial and outdoor enclosures where ambient temperature swings exceed commercial-grade limits.
Memory, interfaces, and board integration
128 kB ROM and 320 kB SRAM on the ESP32-S2 core support lightweight TCP/IP stacks and application code without external RAM for many sensor-node workloads. Serial interfaces include ADC, I2C, I2S, SPI, PWM, and UART — enough peripheral set to connect sensors, displays, and audio codecs without a separate MCU. The 56-VFQFN exposed-pad package requires a thermal land pattern on the PCB to sink heat from the PA during sustained 19.5 dBm transmission.
