Wireless link budget and what it means for range

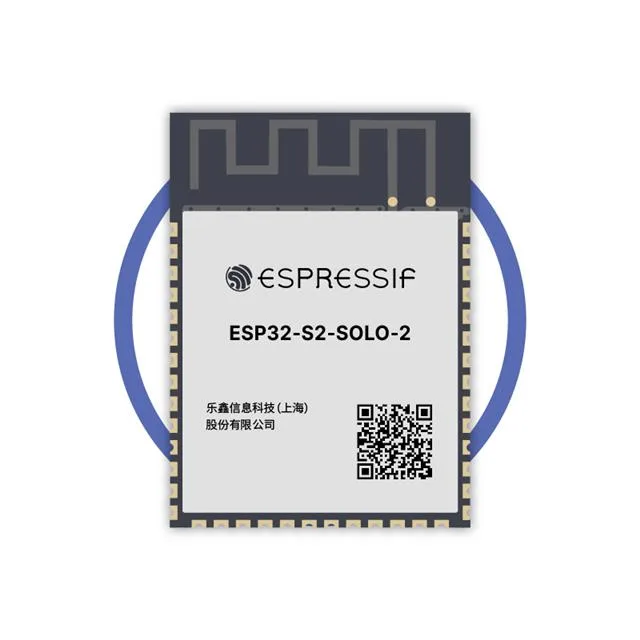

The ESP32-S2-SOLO-2-N4: Transmit power is 19.5 dBm — that is a strong output stage for a 2.4 GHz module, giving roughly 2–3 dB more link margin than the typical 17 dBm ESP32 variants. Combined with -97 dBm receiver sensitivity, the total link budget sits around 116.5 dB, enough for reliable 150-meter line-of-sight range in open air with the on-board PCB trace antenna. No external antenna matching or certification headache — the antenna is integrated and pre-tuned.
Memory map and application sizing
4 MB flash is the N4 variant's distinguishing feature — enough for a full TLS 1.3 stack, OTA update partition, and a moderate application binary. The 336 kB on-chip SRAM plus 128 kB ROM leaves about 200 kB free for heap after the RTOS and WiFi stack overhead. If your application needs more than 4 MB flash for assets or logging, step up to the N8 or N16 flash variants in the same ESP32-S2 family.
Interface set and sensor integration
The module exposes USB, SPI, I2C, I2S, UART, ADC, GPIO, and PWM — enough to hang a temperature/humidity sensor on I2C, a SPI flash for data logging, and drive a PWM fan or LED without an external IO expander. The 41-SMD module has a 0.8 mm pitch castellated edge — route the antenna keep-out zone per Espressif's layout guide; the PCB trace antenna needs a ground plane cutout underneath the module edge.
Supply rails and thermal budget
Current draw in receive mode is 71–75 mA; transmit current ramps to 165–310 mA depending on output power setting.
