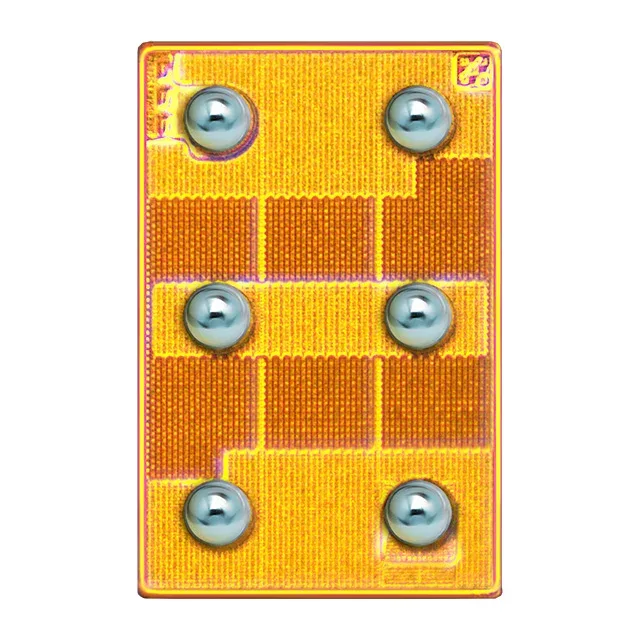

EPC2051
EPC
Tape & Reel (TR); Cut Tape (CT)eGaN®N-Channel
Ref. price$1.32
Lead time on requestGet quote
EPC EPC2 Analog Series
4 variants · EPC
About the EPC EPC2 Analog Series
The EPC EPC2 Analog Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting of Surface Mount, operating temperature of -40°C ~ 150°C (TJ) and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed EPC EPC2 Analog Series part numbers are active and orderable.
Select a variant by
- Case
- 9-VFBGA · 12-WFLGA · Die
- Current - continuous drain (Id) @ 25°C
- 1.7A (Ta) · 1.7A, 500mA · 16A (Ta)
- Drain to source voltage
- 30V · 100 V · 100V
- Gate charge (Qg) (Max) @ vgs
- 0.16nC @ 5V, 0.044nC @ 5V · 2.1 nC @ 5 V · 2.2nC @ 5V, 5.7nC @ 5V
- Input capacitance (Ciss) (Max) @ vds
- 16pF @ 50V, 7pF @ 50V · 230pF @ 15V, 590pF @ 15V · 258 pF @ 50 V
- Rds on (Max) @ id, vgs
- 19mOhm @ 15A, 5V, 8mOhm @ 15A, 5V · 25mOhm @ 3A, 5V · 320mOhm @ 2A, 5V, 3.3Ohm @ 2A, 5V
- Vgs(th) (Max) @ id
- 2.5V @ 1.5mA · 2.5V @ 5mA · 2.5V @ 100µA, 2.5V @ 20µA
- Configuration
- 2 N-Channel (Half Bridge) · 3 N-Channel (Half Bridge + Synchronous Bootstrap)
Shared specifications
- Mounting
- Surface Mount
- Operating temperature
- -40°C ~ 150°C (TJ)
- Package
- Tape & Reel (TR); Cut Tape (CT)
Variant comparison

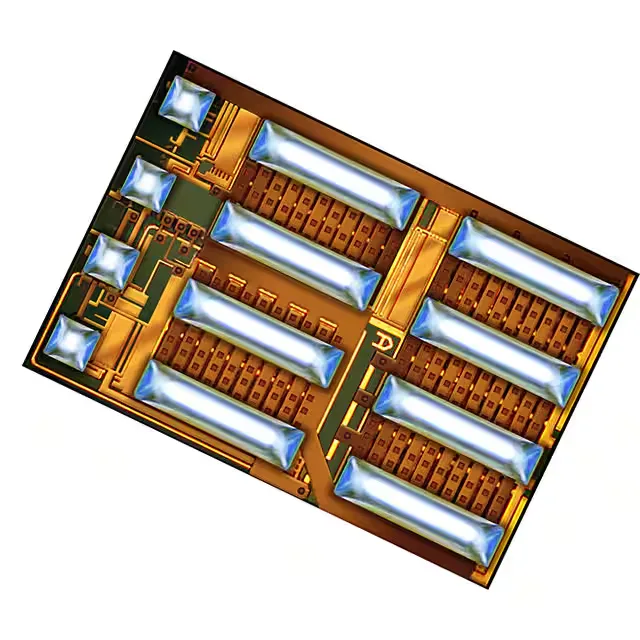

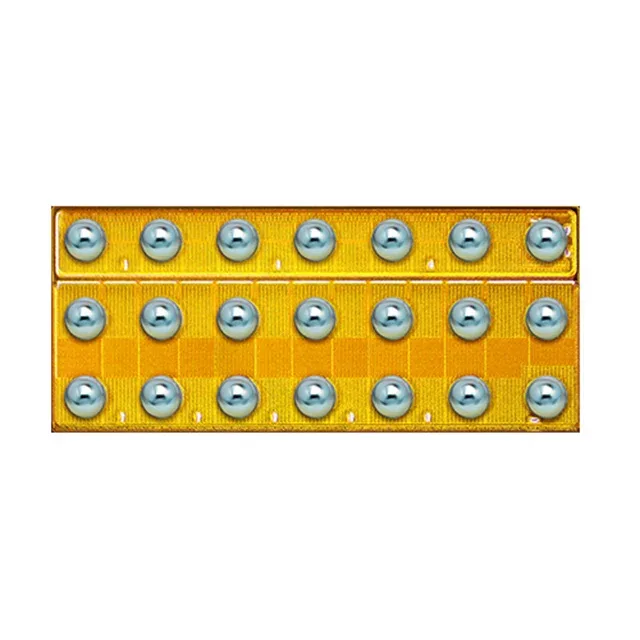

| Parameter | EPC2051 | EPC2107 | EPC2111 | EPC2152ENGRT |
|---|---|---|---|---|
| Case | Die | 9-VFBGA | Die | 12-WFLGA |
| Current - continuous drain (Id) @ 25°C | 1.7A (Ta) | 1.7A, 500mA | 16A (Ta) | — |
| Drain to source voltage | 100 V | 100V | 30V | — |
| Gate charge (Qg) (Max) @ vgs | 2.1 nC @ 5 V | 0.16nC @ 5V, 0.044nC @ 5V | 2.2nC @ 5V, 5.7nC @ 5V | — |
| Input capacitance (Ciss) (Max) @ vds | 258 pF @ 50 V | 16pF @ 50V, 7pF @ 50V | 230pF @ 15V, 590pF @ 15V | — |
| Rds on (Max) @ id, vgs | 25mOhm @ 3A, 5V | 320mOhm @ 2A, 5V, 3.3Ohm @ 2A, 5V | 19mOhm @ 15A, 5V, 8mOhm @ 15A, 5V | — |
| Vgs(th) (Max) @ id | 2.5V @ 1.5mA | 2.5V @ 100µA, 2.5V @ 20µA | 2.5V @ 5mA | — |
| Configuration | — | 3 N-Channel (Half Bridge + Synchronous Bootstrap) | 2 N-Channel (Half Bridge) | — |
Request a quote on any EPC EPC2 Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
