How do the EPC EPC EPC2 Series variants differ?

EPC EPC2 Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, FET type and gate charge (Qg) (Max) @ vgs. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.

How many EPC EPC EPC2 Series part numbers are listed?

13 EPC EPC EPC2 Series part numbers are listed, each with specifications and a datasheet where available.

EPC EPC2 Series

13 variants · EPC

About the EPC EPC EPC2 Series series

The EPC EPC EPC2 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Die, mounting type of Surface Mount and operating temperature of -40°C ~ 150°C (TJ). Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and FET type, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 1.7A · 1.7A (Ta) · 3.4A (Ta) · 29A (Ta)
Drain to source voltage: 15 V · 60 V · 100 V · 100V
FET type: 2 N-Channel (Half Bridge) · N-Channel
Gate charge (Qg) (Max) @ vgs: 0.73nC @ 5V · 1.1 nC @ 5 V · 1.15 nC @ 5 V · 7.4 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds: 75pF @ 50V · 115 pF @ 30 V · 118 pF @ 7.5 V · 851 pF @ 50 V
Rds on (Max) @ id, vgs: 6mOhm @ 16A, 5V · 26mOhm @ 1.5A, 5V · 45mOhm @ 1A, 5V · 70mOhm @ 2A, 5V
Vgs(th) (Max) @ id: 2.5V @ 1mA · 2.5V @ 4mA · 2.5V @ 600µA · 2.5V @ 800µA

Variant comparison

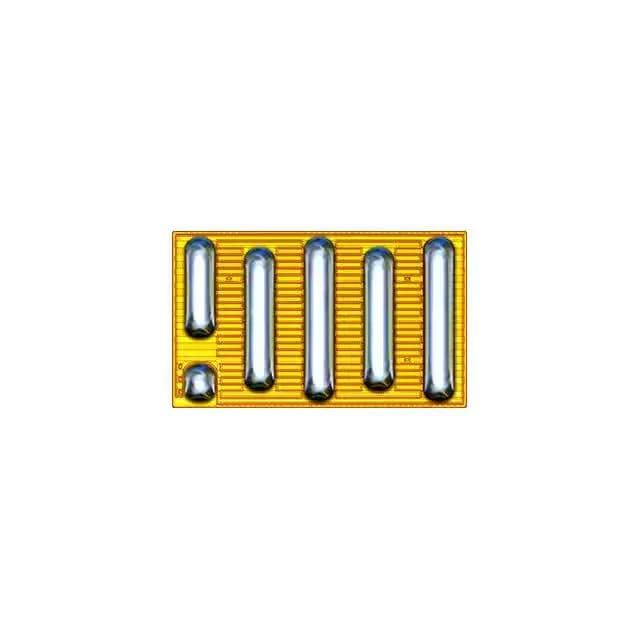

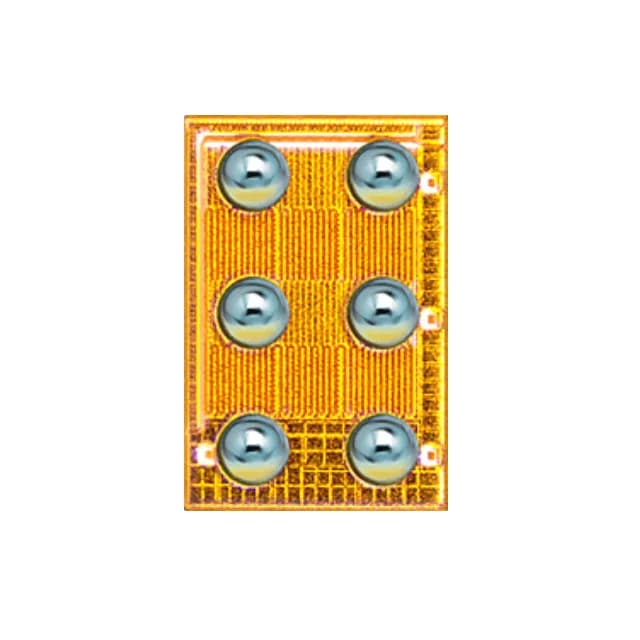

Parameter	EPC2035	EPC2106	EPC2204	EPC2216
Current - continuous drain (Id) @ 25°C	1.7A (Ta)	1.7A	29A (Ta)	3.4A (Ta)
Drain to source voltage	60 V	100V	100 V	15 V
FET type	N-Channel	2 N-Channel (Half Bridge)	N-Channel	N-Channel
Gate charge (Qg) (Max) @ vgs	1.15 nC @ 5 V	0.73nC @ 5V	7.4 nC @ 5 V	1.1 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds	115 pF @ 30 V	75pF @ 50V	851 pF @ 50 V	118 pF @ 7.5 V
Rds on (Max) @ id, vgs	45mOhm @ 1A, 5V	70mOhm @ 2A, 5V	6mOhm @ 16A, 5V	26mOhm @ 1.5A, 5V
Vgs(th) (Max) @ id	2.5V @ 800µA	2.5V @ 600µA	2.5V @ 4mA	2.5V @ 1mA

Shared specifications

Case: Die
Mounting type: Surface Mount
Operating temperature: -40°C ~ 150°C (TJ)
Package: Tape & Reel (TR); Cut Tape (CT)

Request a quote on any EPC EPC2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the EPC EPC EPC2 Series variants differ?: EPC EPC2 Series part numbers differ by current - continuous drain (Id) @ 25°C, drain to source voltage, FET type and gate charge (Qg) (Max) @ vgs. Use the selection guide above to pick by current - continuous drain (Id) @ 25°C.
How many EPC EPC EPC2 Series part numbers are listed?: 13 EPC EPC EPC2 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for EPC EPC EPC2 Series?: Request a quote (RFQ) for any EPC EPC2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
