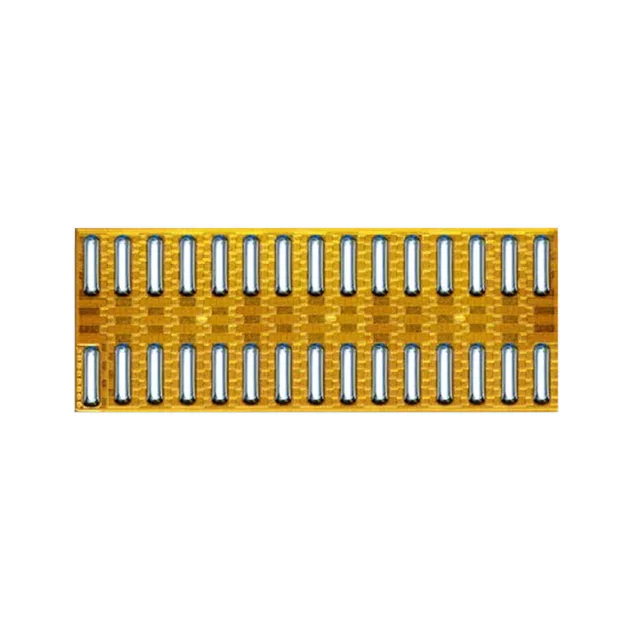

EPC2066
MPNEPC2066
Active
TRANSISTOR GAN 40V .001OHM
$6.25Ref. price · indicative, final on quote
PackagingDie
RoHSROHS3 Compliant
SerieseGaN®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | eGaN® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 5V |
| Current - continuous drain (Id) @ 25°C | 90A (Ta) |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +6V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Case | Die |
| Vgs(th) (Max) @ id | 2.5V @ 28mA |
| Rds on (Max) @ id, vgs | 1.1mOhm @ 50A, 5V |
| Gate charge (Qg) (Max) @ vgs | 33 nC @ 5 V |
| Input capacitance (Ciss) (Max) @ vds | 4523 pF @ 20 V |
