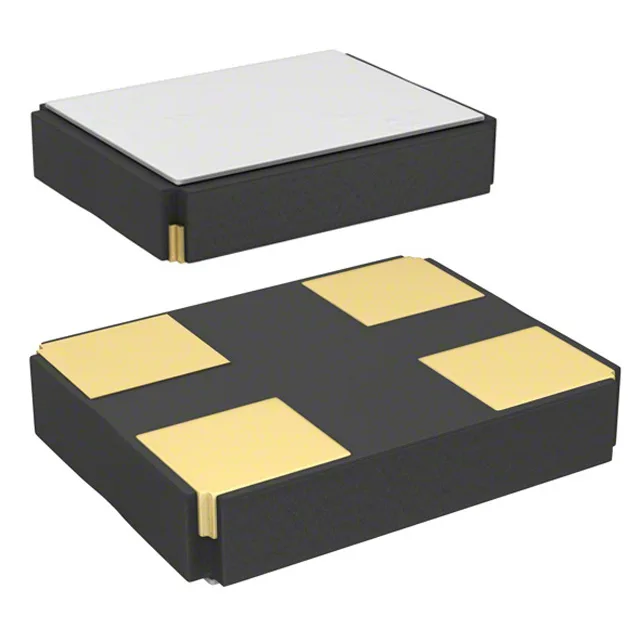

ECS-480-8-47-JTN-TR
ECS Inc.
[IN STOCK] In Stock: 3 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | MHz Crystal |
| Series | ECX-1247 |
| Mounting | Surface Mount |
| ESR | 80 Ohms |
| Frequency | 48 MHz |
| Frequency stability | ±20ppm |
| Frequency tolerance | ±20ppm |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.063\" L x 0.047\" W (1.60mm x 1.20mm) |
| Height - seated | 0.014\" (0.35mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Operating mode | Fundamental |
| Case | 4-SMD, No Lead |
| Load capacitance | 8pF |
