Diodes Incorporated DMNH Series

5 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DMNH Series series

The Diodes Incorporated Diodes Incorporated DMNH Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common FET feature of -, FET type of N-Channel and technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DMNH Series part numbers are active and orderable.

Select a variant by

Case: 8-PowerTDFN · TO-220-3 · TO-252-3, DPak (2 Leads + Tab), SC-63
Current - continuous drain (Id) @ 25°C: 25A (Tc) · 50A (Tc) · 60A (Tc) · 110A (Tc) · 130A (Tc)
Drain to source voltage: 40 V · 60 V · 100 V
Drive voltage (Max rds on, min rds on): 4.5V, 10V · 10V
Gate charge (Qg) (Max) @ vgs: 8.8 nC @ 10 V · 21 nC @ 10 V · 31.9 nC @ 10 V · 35.2 nC @ 10 V · 50.9 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds: 584 pF @ 25 V · 1926 pF @ 30 V · 1942 pF @ 50 V · 2280 pF @ 25 V · 2596 pF @ 30 V
Mounting type: Surface Mount · Through Hole
Operating temperature: -55°C ~ 175°C (TJ) · -55°C~175°C(TJ)

Variant comparison

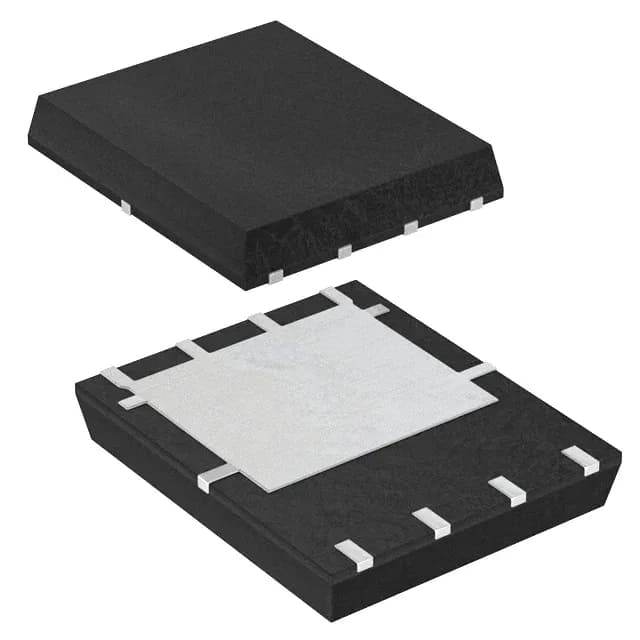

Parameter	DMNH10H028SCT	DMNH4006SPSQ-13	DMNH6008SCTQ	DMNH6012SPSQ-13	DMNH6042SK3Q-13
Case	TO-220-3	8-PowerTDFN	TO-220-3	8-PowerTDFN	TO-252-3, DPak (2 Leads + Tab), SC-63
Current - continuous drain (Id) @ 25°C	60A (Tc)	110A (Tc)	130A (Tc)	50A (Tc)	25A (Tc)
Drain to source voltage	100 V	40 V	60 V	60 V	60 V
Drive voltage (Max rds on, min rds on)	10V	10V	10V	10V	4.5V, 10V
Gate charge (Qg) (Max) @ vgs	31.9 nC @ 10 V	50.9 nC @ 10 V	21 nC @ 10 V	35.2 nC @ 10 V	8.8 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds	1942 pF @ 50 V	2280 pF @ 25 V	2596 pF @ 30 V	1926 pF @ 30 V	584 pF @ 25 V
Mounting type	Through Hole	Surface Mount	Through Hole	Surface Mount	Surface Mount
Operating temperature	-55°C~175°C(TJ)	-55°C~175°C(TJ)	-55°C~175°C(TJ)	-55°C ~ 175°C (TJ)	-55°C~175°C(TJ)

Shared specifications

FET feature: -
FET type: N-Channel
Technology: MOSFET (Metal Oxide)

Request a quote on any Diodes Incorporated DMNH Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Diodes Incorporated Diodes Incorporated DMNH Series variants differ?: Diodes Incorporated DMNH Series part numbers differ by case, current - continuous drain (Id) @ 25°C, drain to source voltage and drive voltage (Max rds on, min rds on). Use the selection guide above to pick by case.
How many Diodes Incorporated Diodes Incorporated DMNH Series part numbers are listed?: 5 Diodes Incorporated Diodes Incorporated DMNH Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DMNH Series?: Request a quote (RFQ) for any Diodes Incorporated DMNH Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
