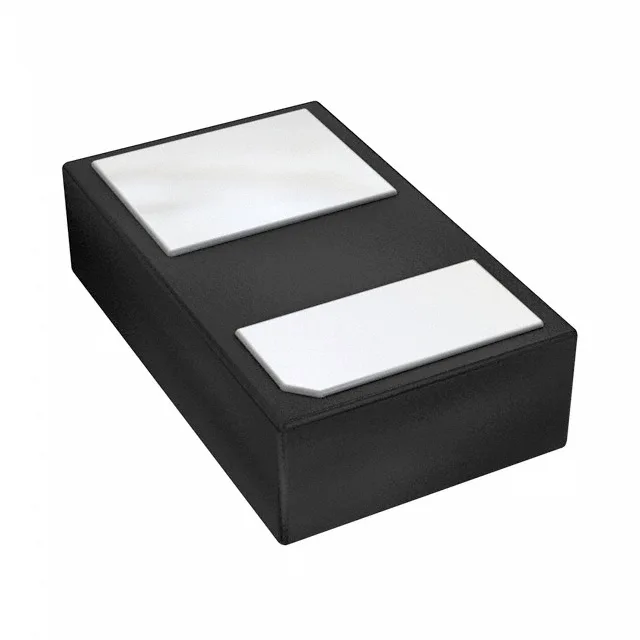

SDM2U40CSP-7B Schottky Rectifier 40V 2A 2-XDFN
MPNSDM2U40CSP-7B
End of Life
DIODE SCHOTT 40V 2A X3-WLB1608-2
$0.42Ref. price · indicative, final on quote
Packaging2-XDFN
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 40 V |
| Voltage - forward (Vf) (Max) @ if | 530 mV @ 2 A |
| Current - reverse leakage @ vr | 150 µA @ 40 V |
| Current - average rectified | 2A |
| Operating temperature - junction | -55°C ~ 150°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Schottky |
| Case | 2-XDFN |
| Capacitance @ vr, | 85pF @ 5V, 1MHz |
