Diodes Incorporated PI5USB2546ZHDEX
MPNPI5USB2546ZHDEX
End of Life
IC PWR SWITCH N-CHAN 1:1 16UQFN
$1.22Ref. price · indicative, final on quote

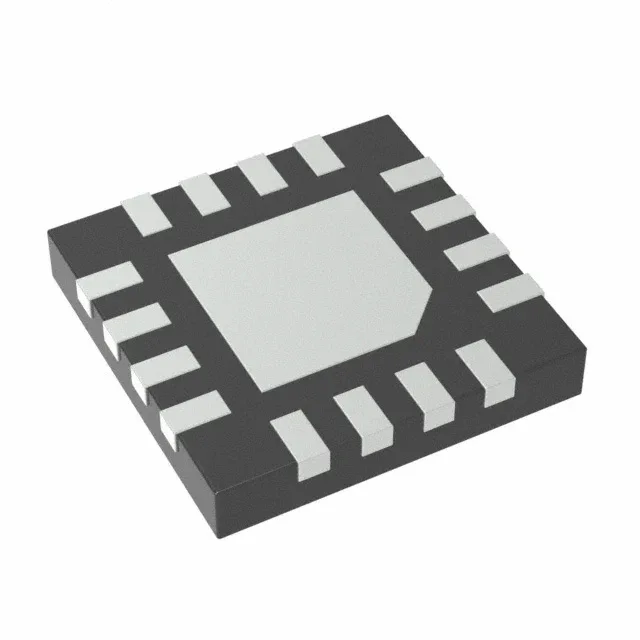

Packaging16-UFQFN Exposed Pad
RoHSRoHS Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Non-Inverting |
| Output type | N-Channel |
| Type | USB Switch |
| Mounting | Surface Mount |
| Voltage - load | 4.5V ~ 5.5V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 2.5A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Status Flag |
| Rds on | 73mOhm |
| Case | 16-UFQFN Exposed Pad |
| Fault protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
