PI3WVR646GEEX
Diodes Incorporated
ANALOG SWITCH 3V-5V U-WLB2424-36
[IN STOCK] In Stock: 3 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 1.5V ~ 5V |
| Operating temperature | -40°C ~ 85°C (TA) |
| -3db bandwidth | 4.5GHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Differential Compatibility |
| Applications | Telecommunications |

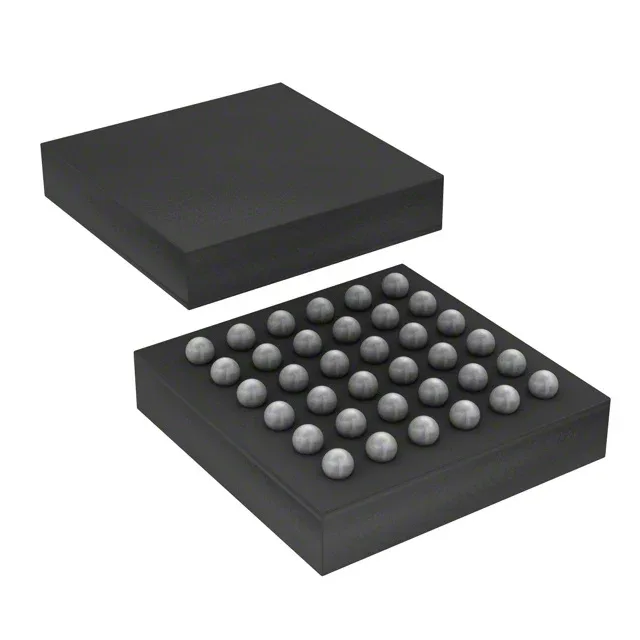

| Case | 36-UFBGA, WLCSP |
| Switch circuit | SPDT |
| Channels | 10 |
| On-State resistance | 6Ohm (Typ) |
| Multiplexer (Demultiplexer circuit) | 2:1 |
PI3WVR646GEEX
[ALLOC] verified
