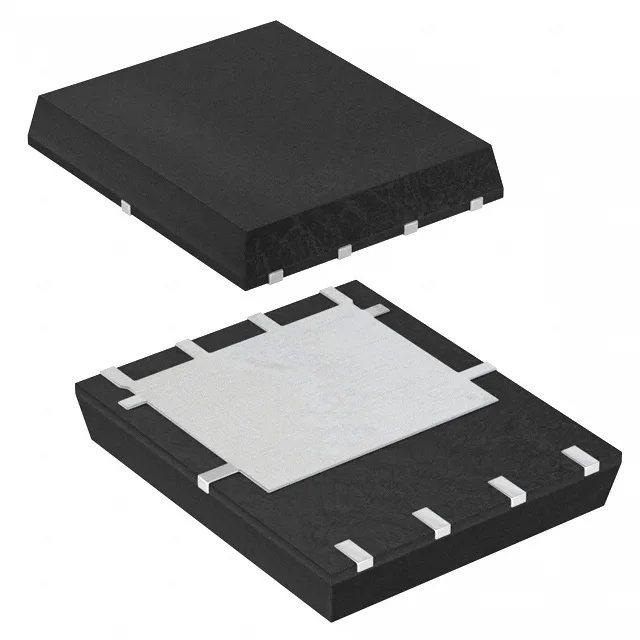

DMTH3002LPS-13
Diodes Incorporated
MOSFET N-CH 30V 100A PWRDI5060-8
[IN STOCK] In Stock: 1 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 100A (Tc) |
| Power dissipation | 1.2W (Ta), 136W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±16V |
| Technology | MOSFET (Metal Oxide) |
| Qualification | AEC-Q101 |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 2V @ 1mA |
| Rds on (Max) @ id, vgs | 1.6mOhm @ 25A, 10V |
| Gate charge (Qg) (Max) @ vgs | 77 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 5000 pF @ 15 V |
