DMN2016LHAB-7
Diodes Incorporated
MOSFET 2N-CH 20V 7.5A 6UDFN
[IN STOCK] In Stock: 225 pcs
MOQ 5 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Mounting | Surface Mount |
| Drain to source voltage | 20V |
| Current - continuous drain (Id) @ 25°C | 7.5A |
| Power - max | 1.2W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET feature | Logic Level Gate |
| Configuration | 2 N-Channel (Dual) Common Drain |

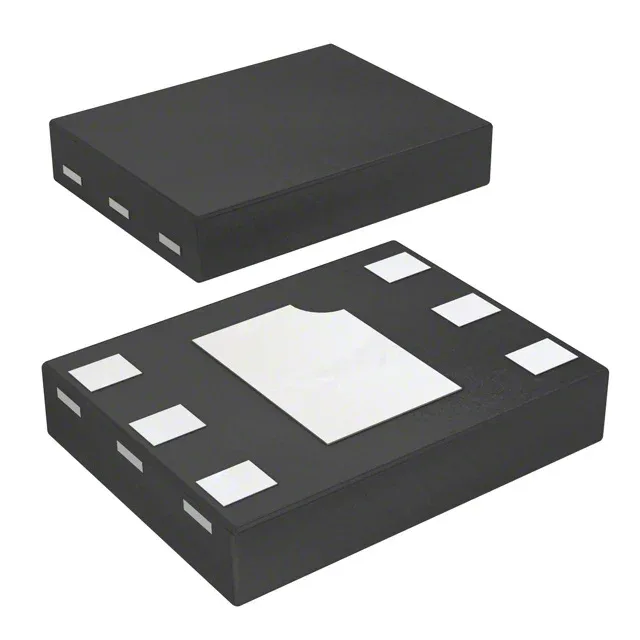

| Case | 6-UDFN Exposed Pad |
| Vgs(th) (Max) @ id | 1.1V @ 250µA |
| Rds on (Max) @ id, vgs | 15.5mOhm @ 4A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 16nC @ 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 1550pF @ 10V |
