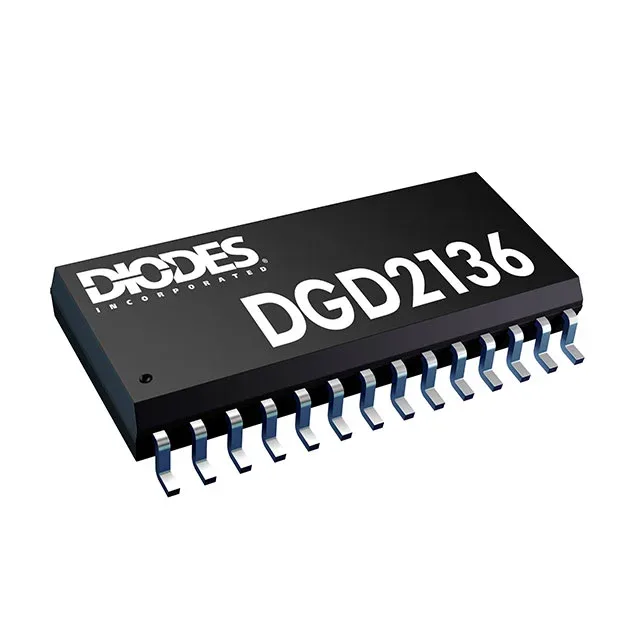

Diodes Incorporated DGD2136MS28-13
MPNDGD2136MS28-13
End of Life
IC GATE DRVR HALF-BRIDGE 28SO
$2.5Ref. price · indicative, final on quote
Packaging28-SOIC (0.295", 7.50mm Width)
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Gate type | IGBT, N-Channel MOSFET |
| Input type | Inverting |
| Channel type | 3-Phase |
| Mounting | Surface Mount |
| Supply voltage | 10V ~ 20V |
| Logic voltage - VIL, VIH | 0.8V, 2.4V |
| High side voltage - max (Bootstrap) | 600 V |
| Current - peak output (Source, sink) | 200mA, 350mA |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 28-SOIC (0.295\", 7.50mm Width) |
| Number of drivers | 6 |
| Driven configuration | Half-Bridge |
| Rise (Fall time) | 90ns, 35ns |
