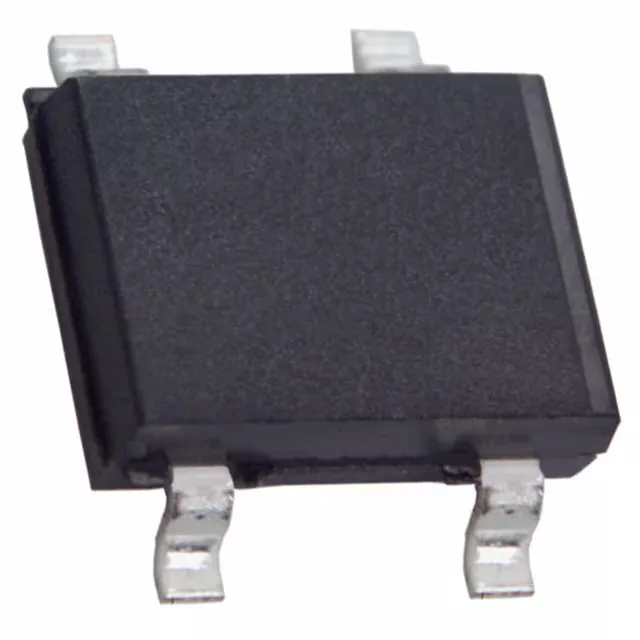

DF10S-T
Diodes Incorporated
BRIDGE RECT 1PHASE 1KV 1A DF-S
[IN STOCK] In Stock: 210 pcs
MOQ 1 · Tape & Reel (TR) Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Diode type | Single Phase |
| Mounting | Surface Mount |
| Voltage - peak reverse | 1 kV |
| Voltage - forward (Vf) (Max) @ if | 1.1 V @ 1 A |
| Current - reverse leakage @ vr | 10 µA @ 1000 V |
| Current - average rectified | 1 A |
| Operating temperature | -65°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | Standard |
| Case | 4-SMD, Gull Wing |
DF10S-T
[ALLOC] verified
