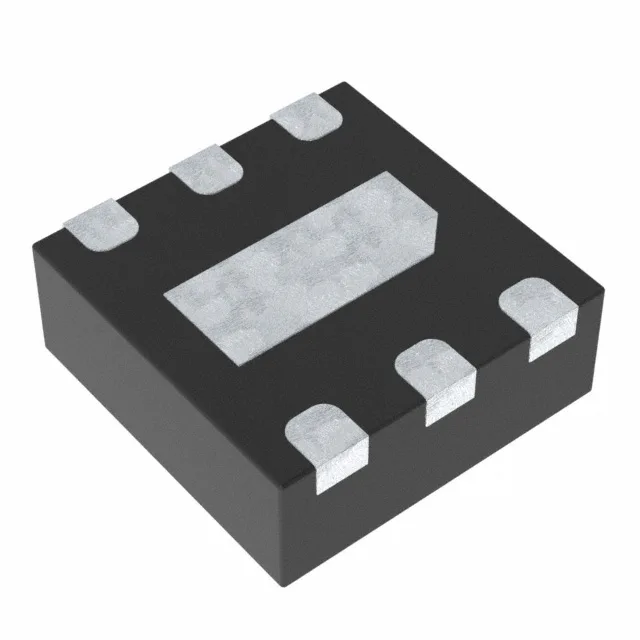

AP22652FDZ-7 Load Switch W-DFN2020-6 — Diodes Inc | ICBOMS
MPNAP22652FDZ-7
Active
LOAD SWITCH,W-DFN2020-6,T&R,3K
$0.4800Ref. price · indicative, final on quote
Packaging6-WDFN Exposed Pad
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Inverting |
| Output type | P-Channel |
| Type | General Purpose |
| Mounting | Surface Mount |
| Voltage - load | 3V ~ 5.5V |
| Voltage - supply (Vcc (Vdd)) | Not Required |
| Output current | 2.1A |
| I/O channels | 1 |
| Interface | On/Off |
| Operating temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Rds on | 65mOhm |
| Case | 6-WDFN Exposed Pad |
| Fault protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Output configuration | High Side |
| Ratio - Input:Output | 1:1 |
