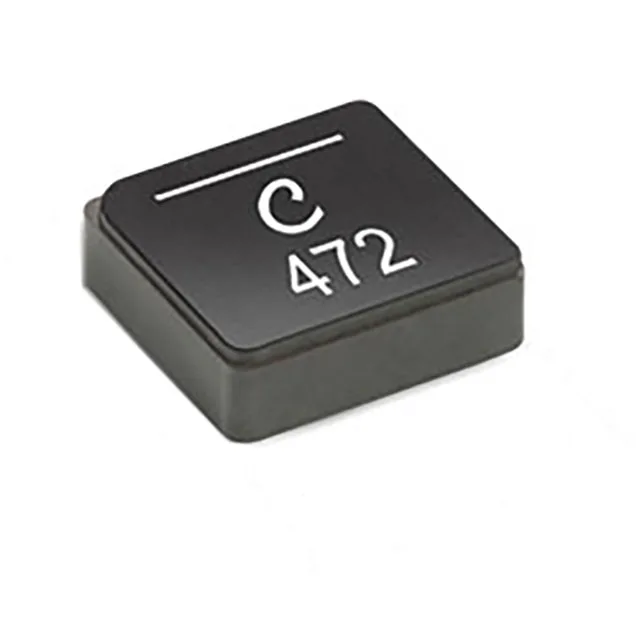

XGL5020-472MEC
Coilcraft
[IN STOCK] In Stock: 9 pcs
MOQ 1 · Strip · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Molded |
| Series | XGL5020 |
| Mounting | Surface Mount |
| Current rating | 5.7 A |
| Current - saturation | 5.3A |
| Frequency - self resonant | 20MHz |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C~125°C |
| Size (Dimension) | 0.216\" L x 0.208\" W (5.48mm x 5.28mm) |
| Height - seated | 0.083\" (2.10mm) |
| Package | Strip |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Case | Nonstandard |
| DC resistance | 41.5mOhm Max |
