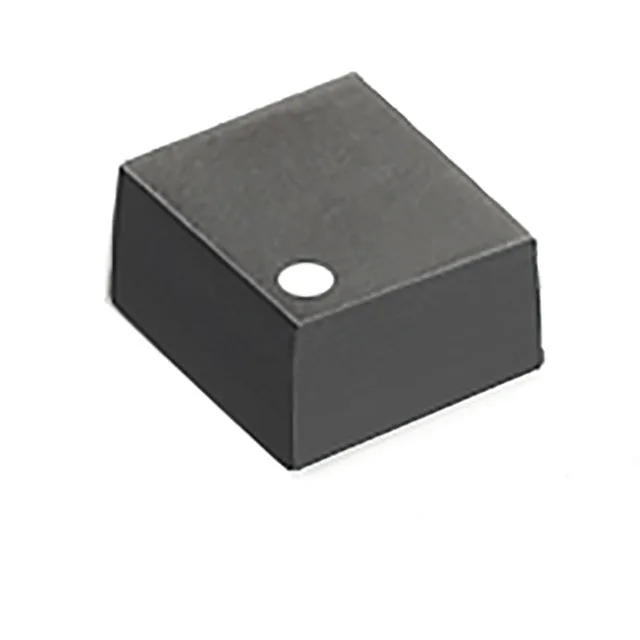

XFL2010-102MEC
Coilcraft
[IN STOCK] In Stock: 35 pcs
MOQ 1 · Strip · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | XFL2010 |
| Mounting | Surface Mount |
| Current rating | 1.3 A |
| Current - saturation | 1.68A |
| Frequency - self resonant | 130MHz |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C~125°C |
| Size (Dimension) | 0.079\" L x 0.075\" W (2.00mm x 1.90mm) |
| Height - seated | 0.039\" (1.00mm) |
| Package | Strip |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 1 µH |
| Case | Nonstandard |
| DC resistance | 83mOhm Max |
XFL2010-102MEC
