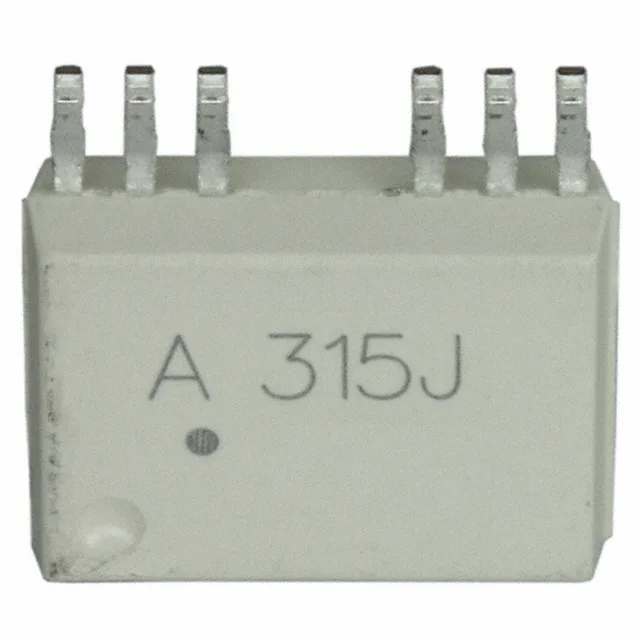

OPTOISO 5KV 2CH GATE DVR 16SO
$6.8100Ref. price · indicative, final on quote
Packaging16-SOIC (0.295", 7.50mm Width), 12 Leads
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount |
| Voltage - isolation | 5000Vrms |
| Voltage - output supply | 15V ~ 30V |
| Voltage - forward (Vf) | 1.6V |
| Current - peak output | 600mA |
| Current - output high, low | 500mA, 500mA |
| Current - DC forward (If) | 25 mA |
| Operating temperature | -40°C ~ 100°C |
| Pulse width distortion | 300ns |
| Approval agency | CSA, IEC/EN/DIN, UR |
| Package | Tube |
| Technology | Optical Coupling |
| Case | 16-SOIC (0.295\", 7.50mm Width), 12 Leads |
| Number of channels | 2 |
| Rise (Fall time) | 100ns, 100ns |
| Propagation delay tpLH (tpHL) | 500ns, 500ns |
| Common mode transient immunity | 15kV/µs |
