HCPL-2300-300E
Broadcom Limited
OPTOISO 3.75KV OPEN COLL 8DIP GW
[IN STOCK] In Stock: 2 pcs
MOQ 1 · Tube · RoHS · EIA-481 · DAP/DDP · T/T

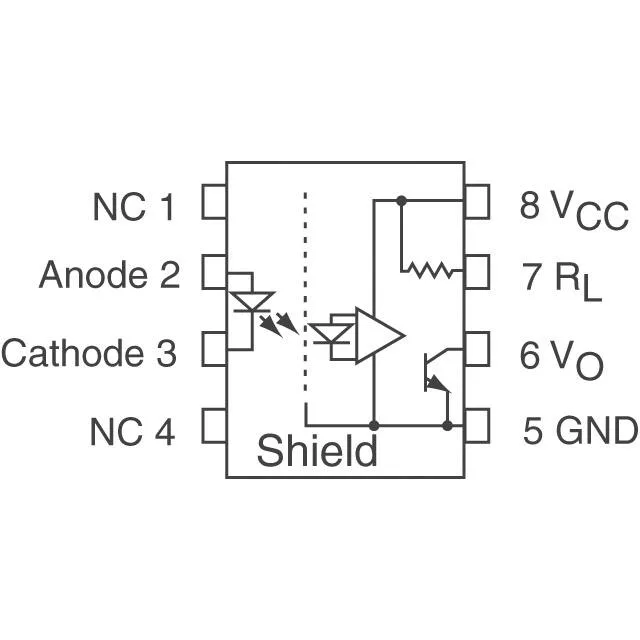

Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Input type | DC |
| Output type | Open Collector, Schottky Clamped |
| Mounting | Surface Mount |
| Supply voltage | 4.75V ~ 5.25V |
| Voltage - isolation | 3750Vrms |
| Voltage - forward (Vf) | 1.3V |
| Current - output (Channel) | 25 mA |
| Current - DC forward (If) | 5mA (Typ) |
| Operating temperature | -40°C ~ 85°C |
| Package | Tube |
| Data rate | 5MBd |
| Case | 8-SMD, Gull Wing |
| Channels | 1 |
| Inputs - side 1/Side 2 | 1/0 |
| Rise (Fall time) | 40ns, 20ns |
| Propagation delay tpLH (tpHL) | 160ns, 200ns |
| Common mode transient immunity | 100V/µs |
HCPL-2300-300E
